Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

I need 4 of these. 2 for an upper window and 2 for a lower window or the exact replacement.

I recently ordered replacement parts, but they do not work for this window. Can you help me identify the correct coil balance and the shoe for this window project? Thank you. -Christopher.

coil balances

There were a lot of broken plastic bits.

I returned Pivot Shoe 15-192 because it has extended rails/guides either side, making it not a suitable fit for my 2007 Simonton brand windows. Please image indicating dimensions of my intact pivot shoe along with image of the ill-fitting pivot shoe. Please recommend a shoe that fits. Thank you ... (cont.)

Need to determine parts needed to replace a couple tilt latch and spring balance assemblies for Simonton windows manufactured in 1996. Also guidance in replacing them, ie do the side jambs need to be cut in order to remove and replace the parts. If so, suggested location for the cut. Already replace ... (cont.)

Looking for these parts any help would be apricate it.

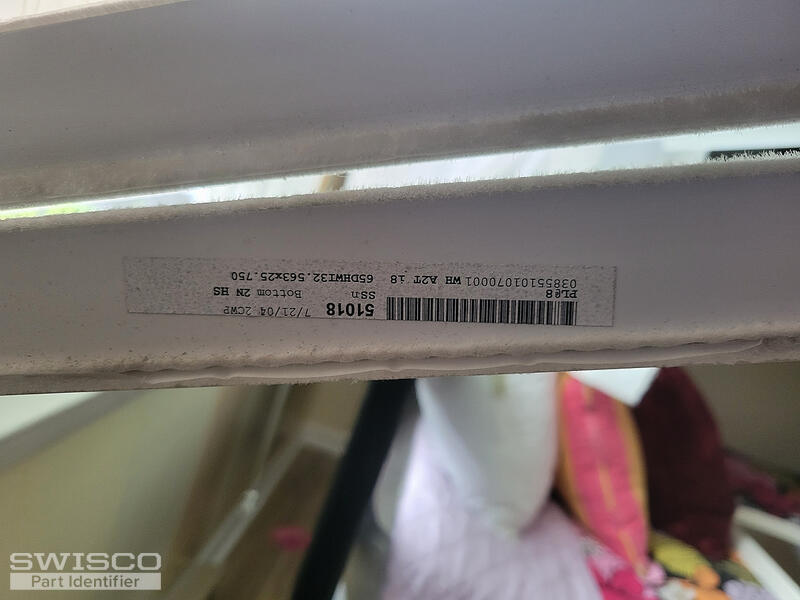

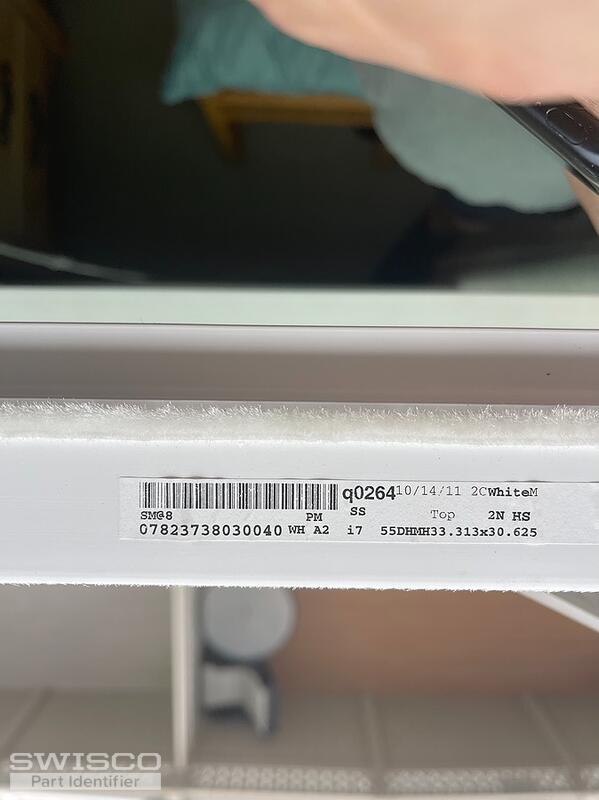

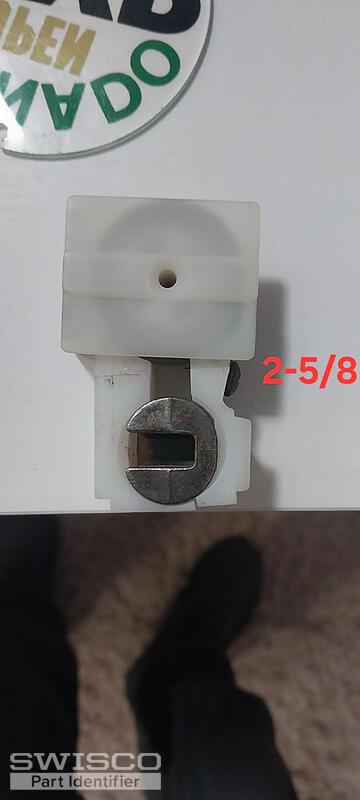

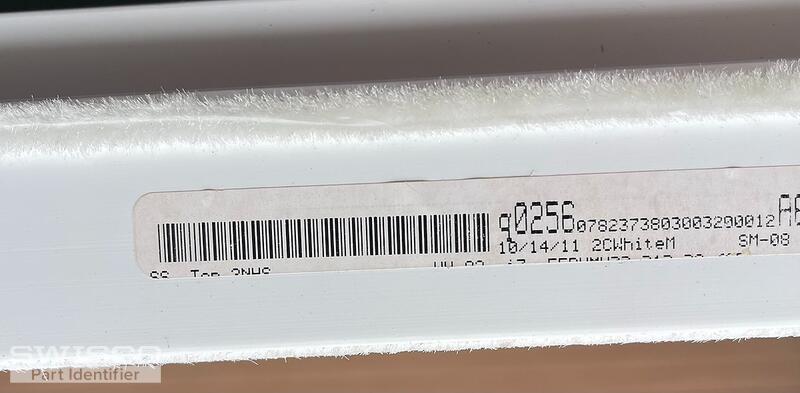

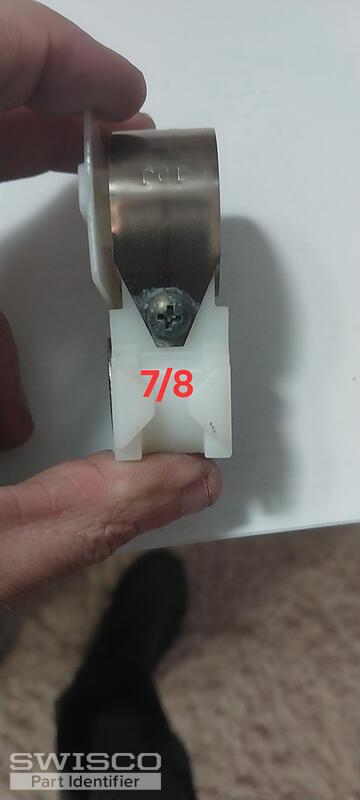

The pivot shoes in three lower sashes have broken. Do you have a suitable replacement like that shown in the photos and is 7/8" x 1 1/4" x 1 3/8" ? I believe a taller item would work, but the width and length need to fit in the track. Window frame and sash labels also attached in case they are helpf ... (cont.)

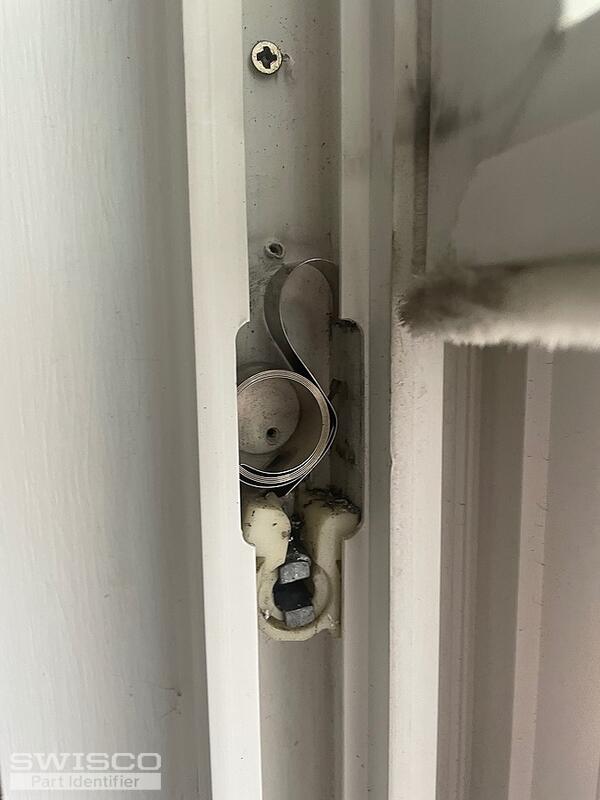

Window coil does not work. Plastic part on bottom attatched to coil holding metal window shoe broke. Need parts and instructions to replace please. Thanks.

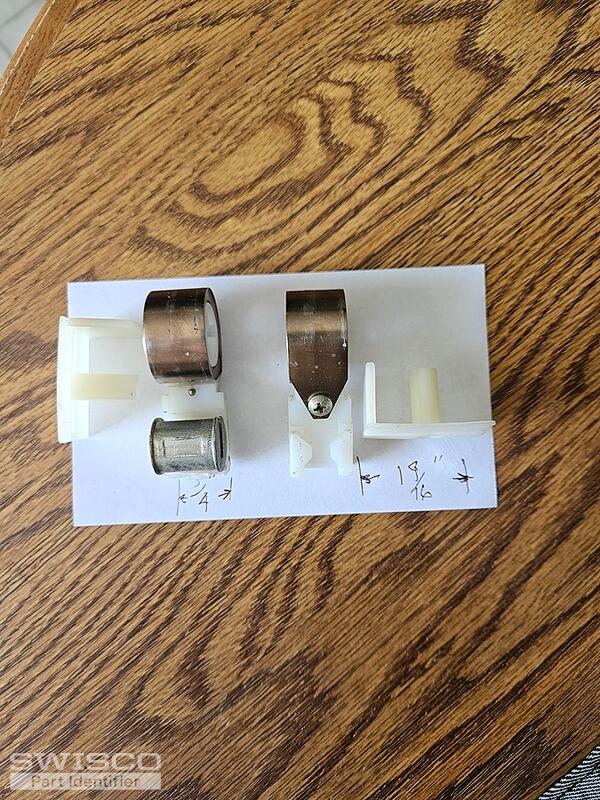

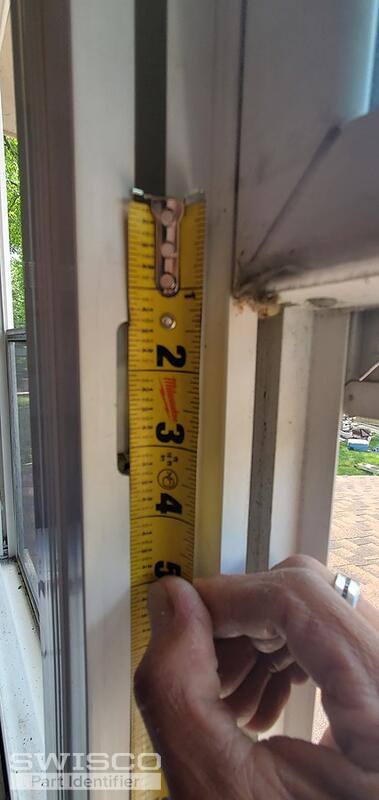

I see that pivot shoes fit right or left. I need 12 to replace in my three Simonton Windows brand double-hung windows. My photo includes dimensions of the pivot shoe. Please advise which of your pivot shoes might fit my application. thank you

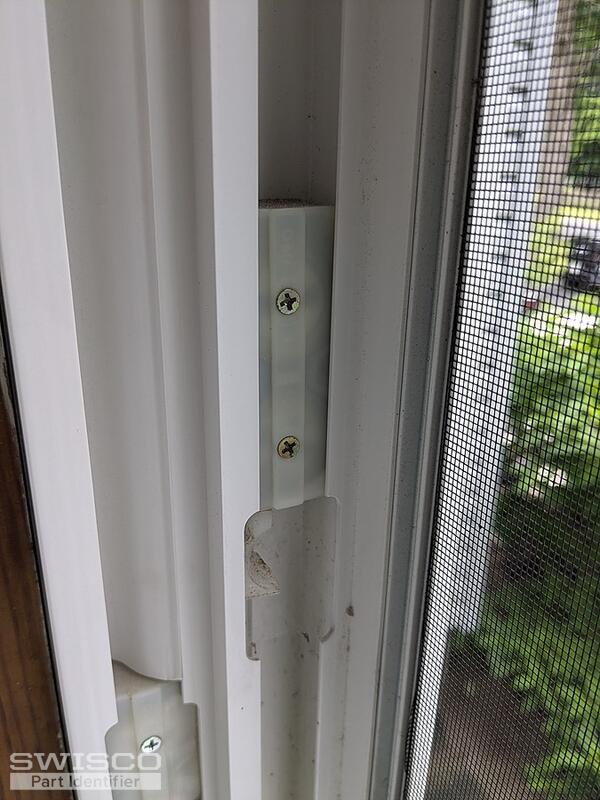

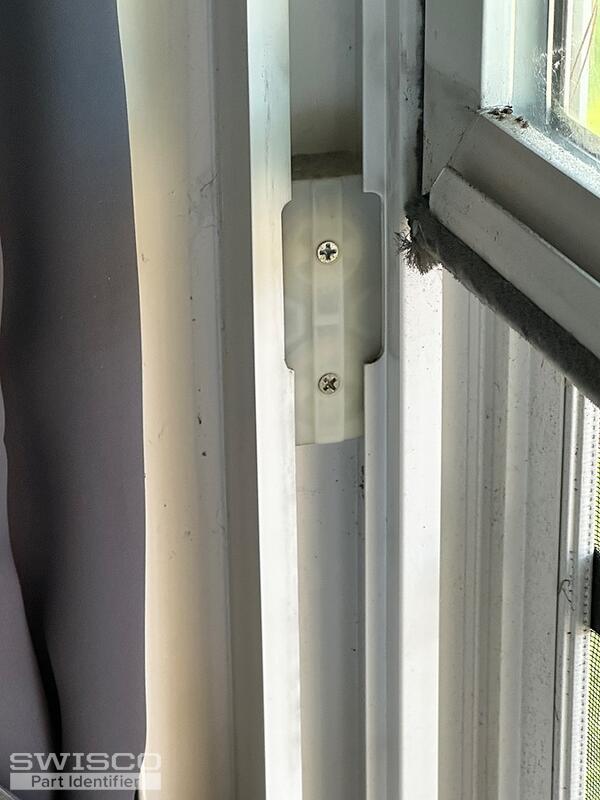

These windows are Simonton company, about 20 yrs old. Need new balance parts, as shown in photos. Thank you

I need new coil balances and cams.

This part is broken and needs replaced

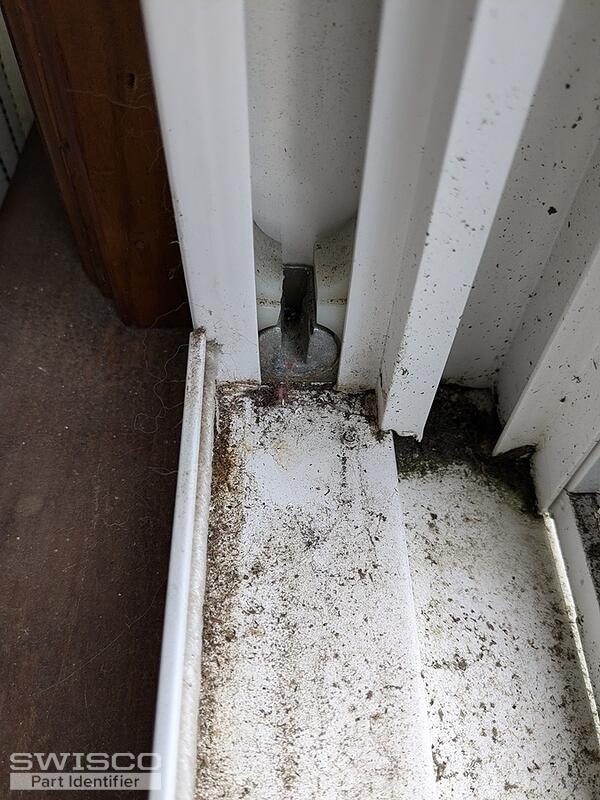

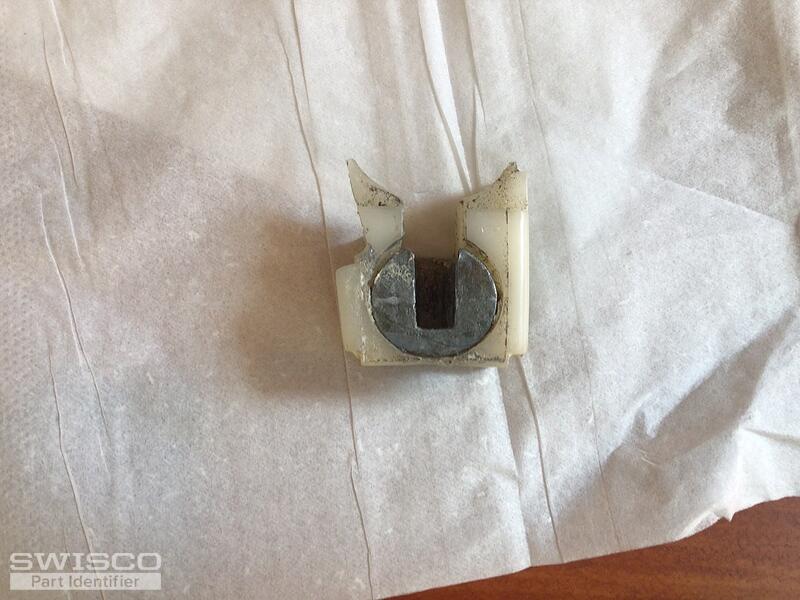

pivot shoes broken on the windows shown in photos. would like to purchase assembly to replace.thanks

Hello, I am looking for a replacement tensioner for my windows. Attached are the pictures I have, unfortunately all 4 are broke. Thank you for you assistance,

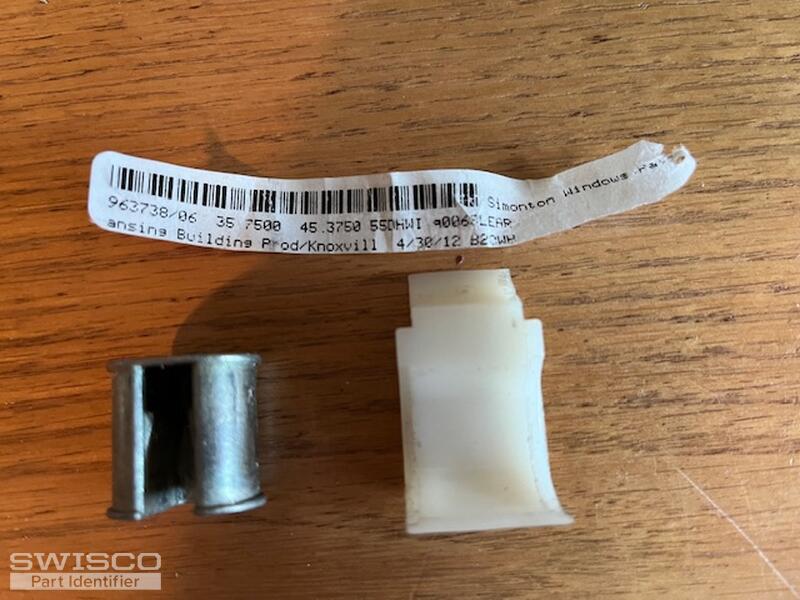

Hi,I hope you can tell me which parts I can buy to repair my windows. I need a latch, tilt coil springs and the white plastic parts that is in the picture # 1627.Thank you for your answer.Anne

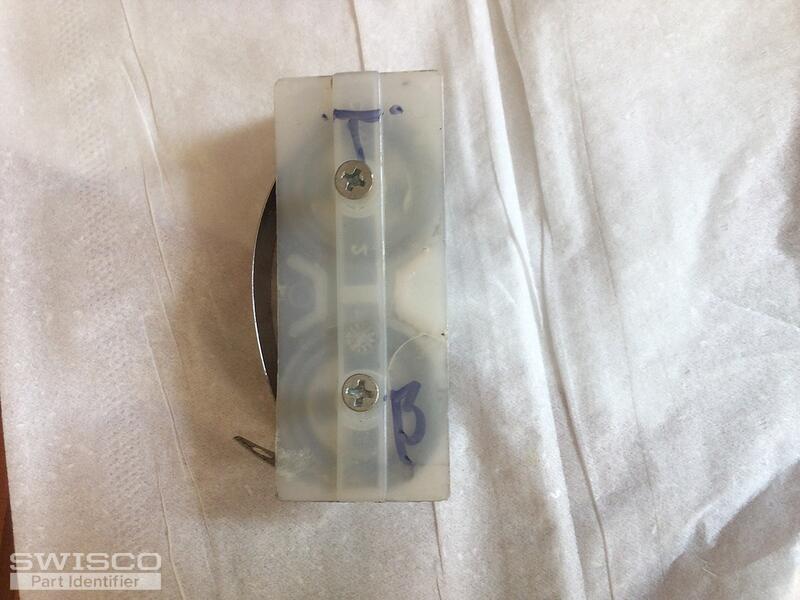

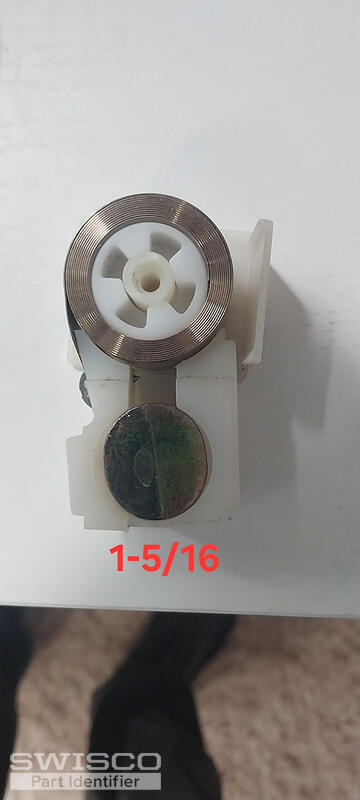

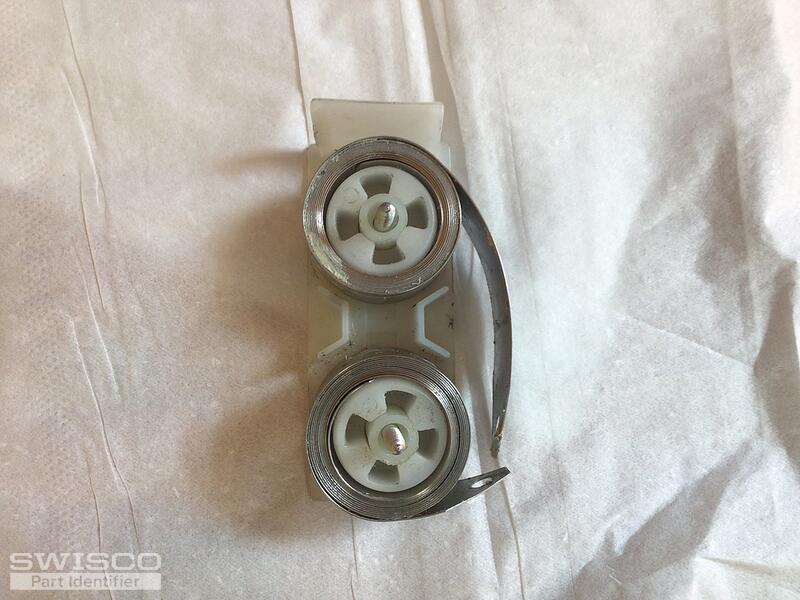

Hello, I am looking to get a match for a balancer coil that broke. The window was a Simonton Double coil balancer Markings China / 2 / 2 within a circle / 1-12 number dial with the arrow pointing to 4 and a 1 & 3 on each side of the arrow (see attached pic) The pivot shoe has broken and I am look ... (cont.)

Simonton coil balance replacements needed for 2 lower sash windows and one upper sash. Double coils they are. Bottom sash weights 21.7 lbs. I want to get the correct coils. Coil spring S159 is this ok? Double coil support 15-256. Pivot shoe 15-259. Pivot bar 26-083 needed? Numbers on window frame 62 ... (cont.)

I believe the I've found enough information on your site to know that the 15-259 pivot shoe is the proper replacement for the broken pivot shoe in the photos I've provided. And I know that I need to also get a new pivot bar 26-083 to replace the existing pivot bars. (Sears Vinyl Window installed i ... (cont.)

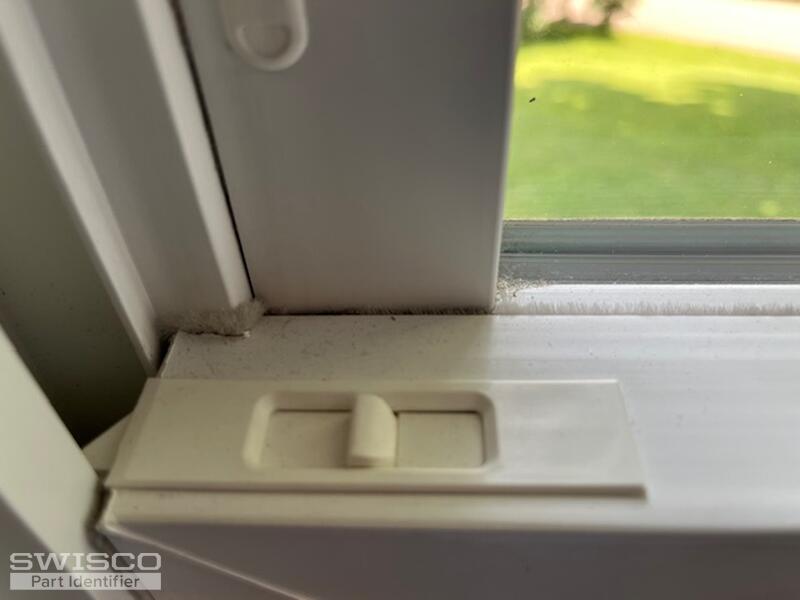

The plastic part of the tilt latch is broken. I can't find it in you part list. Please advice. Thank you
