Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

I have 2 double hung windows that I believe to have broken pivots. Hoping that you can identify and carry the replacement parts for my windows. Also attached is a phot of label attached to lower window sash thrives a build date of 2008.

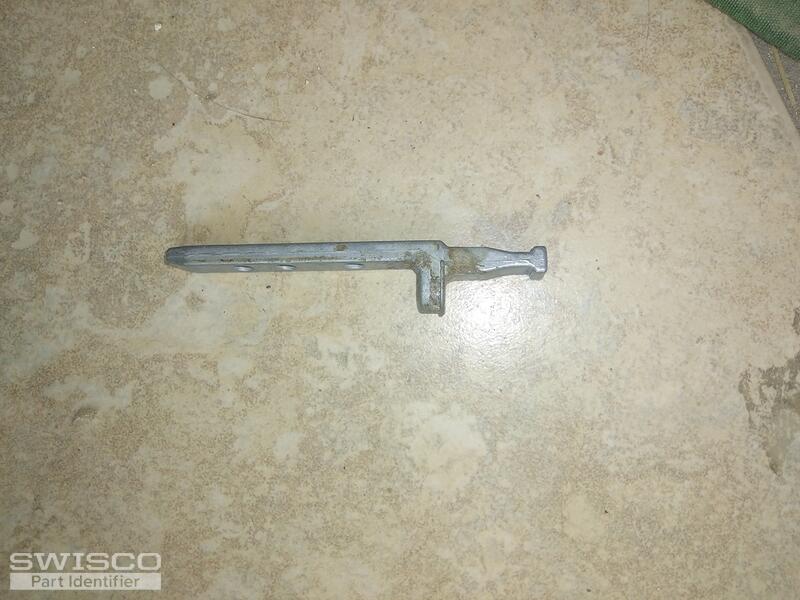

I'm looking for a replacement pivot bar, and the plastic cover. I can combine them with the 534824 shoe to complete my repairs. I understand a lot of these parts are no longer available, so any recommendations would be appreciated. If I need to replace the whole assembly with something else, I am wi ... (cont.)

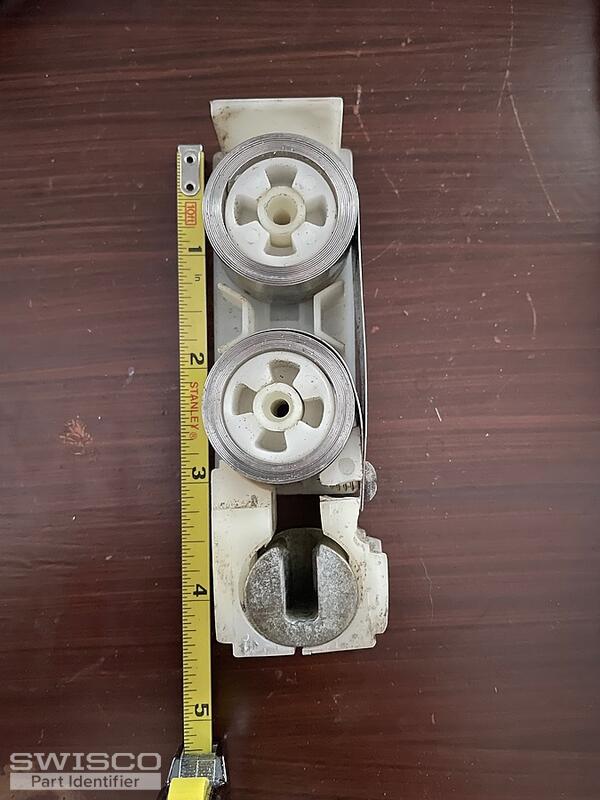

Hi, I have a bottom sash, Simonton I believe, installed 1996, 35.5 inches by 25 inches. Each side has two springs 405 J. Photo attached. The broken parts are both pivots and one shoe. The springs appear OK. They attach to the shoe with a single screw. I'd like to replace both pivots and both ... (cont.)

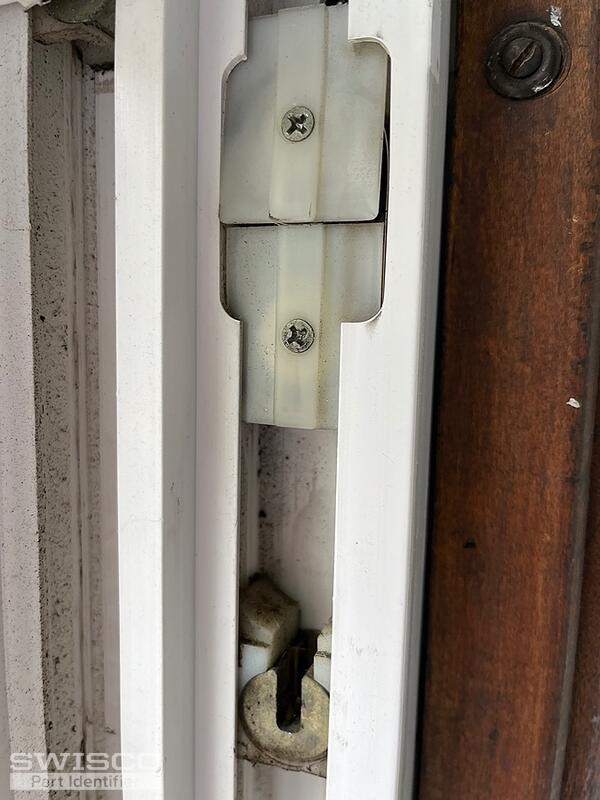

I have a Simonton window from 2005 I do have a tag on the side of the window but need parts for several of the same kind of windows. Double hung Certainteed Tilt Coil Spring. It appears to look something like this in the photos. Would you be able to determine what part I need?

The pivot bar on my Simonton 5500 double hung is broken. Please help me get new hardware. The window is 18 pounds.Shown are the spring with #11 stamped on it as well as the pivot bar and shoe.Thanks, Jim

I need this part name and number for a prism window

Hello, I had my Simonton windows installed a few years ago, now these mechanisms are breaking rapidly. Plastic ends are breaking in a lot of my windows. Can you help ID the part and help me with getting new ones, hopefully constructed better than the originals?

I can not find any other identifying marks on my customers window. Do these look familiar at all to you?Kelly

Hello, I have 2 windows which no longer stay up and I believe you have the part I need. Would you be able to please help me. Thank you.

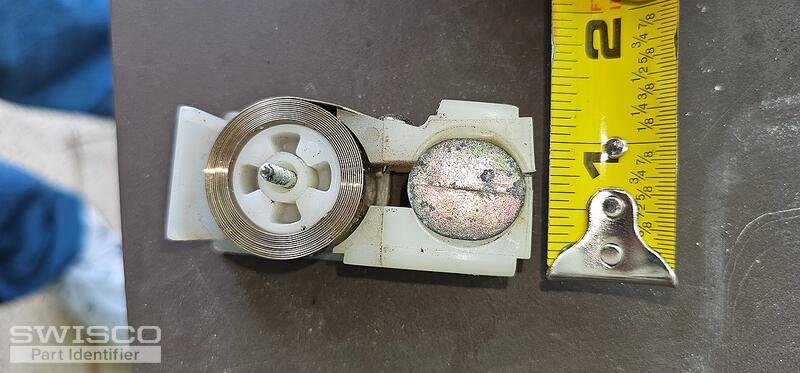

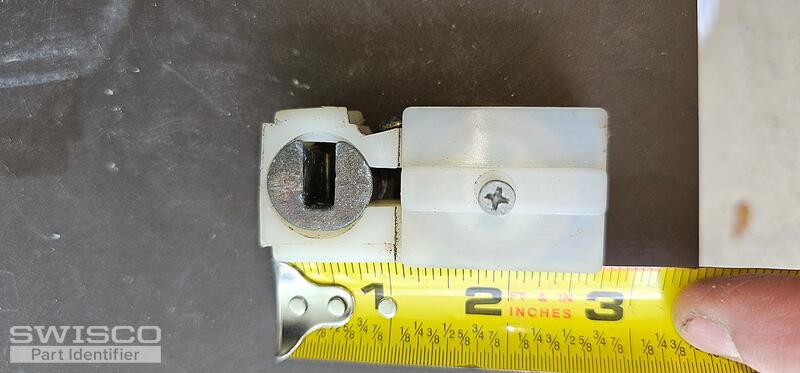

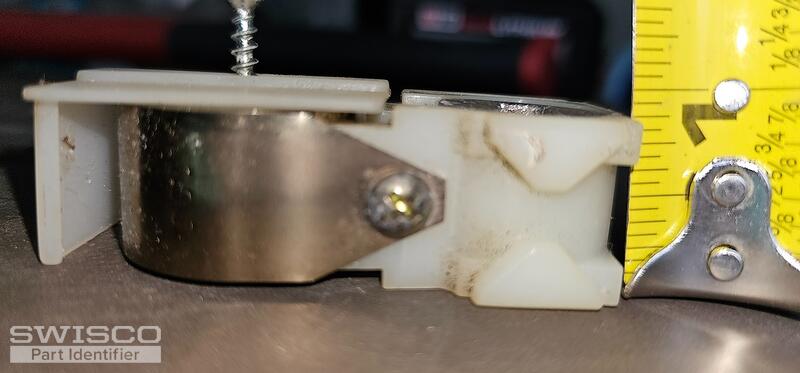

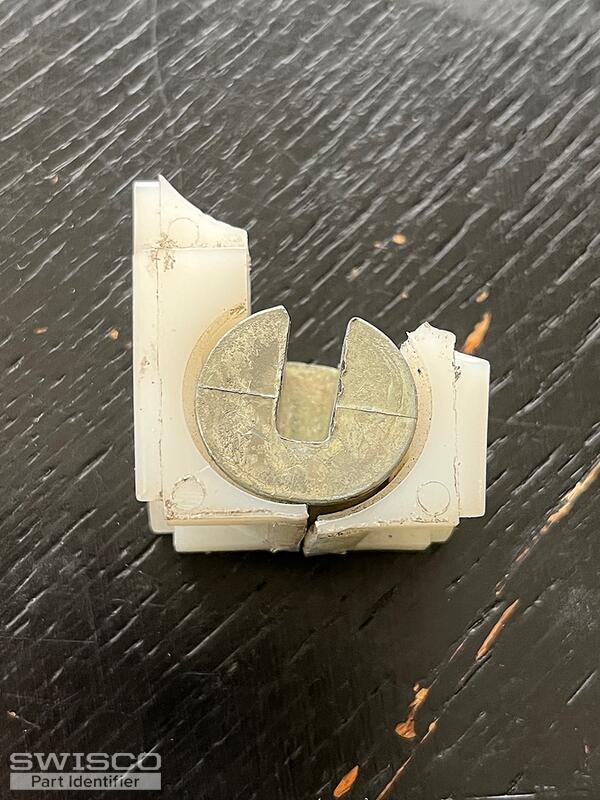

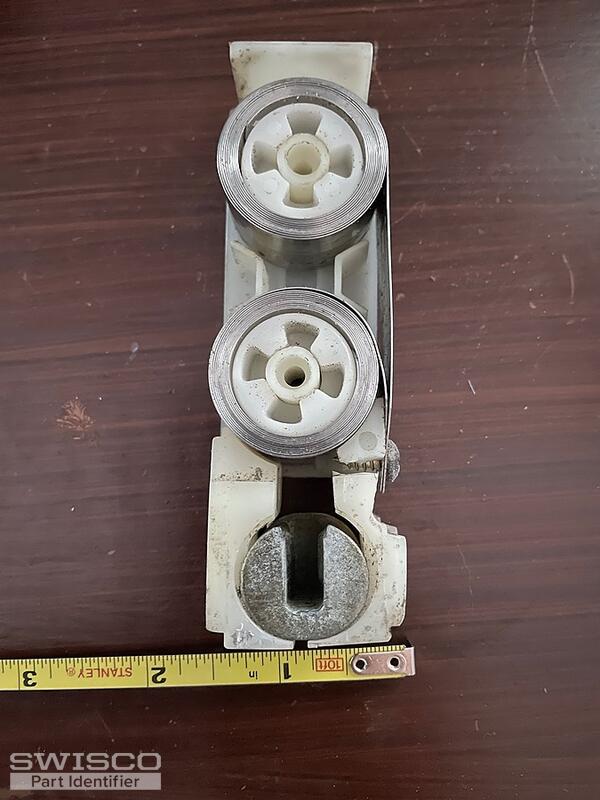

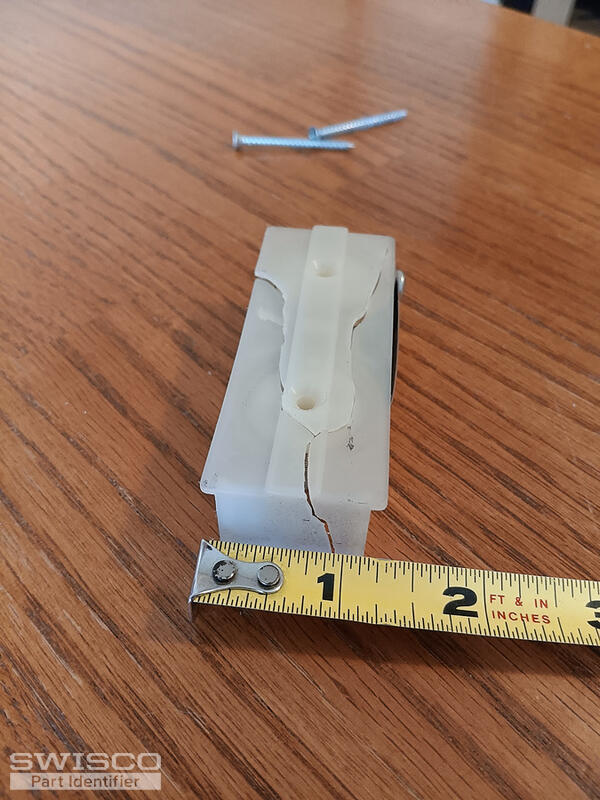

Hi, This is a dual spring unit from a Simonton window. No markings of any type are visible. The nylon shoe split apart where it mounts to the springs. What do I need to buy to complete this repair? I estimate the sash weighs about 20#, but I don't have a scale available right now. Thanks! Al ... (cont.)

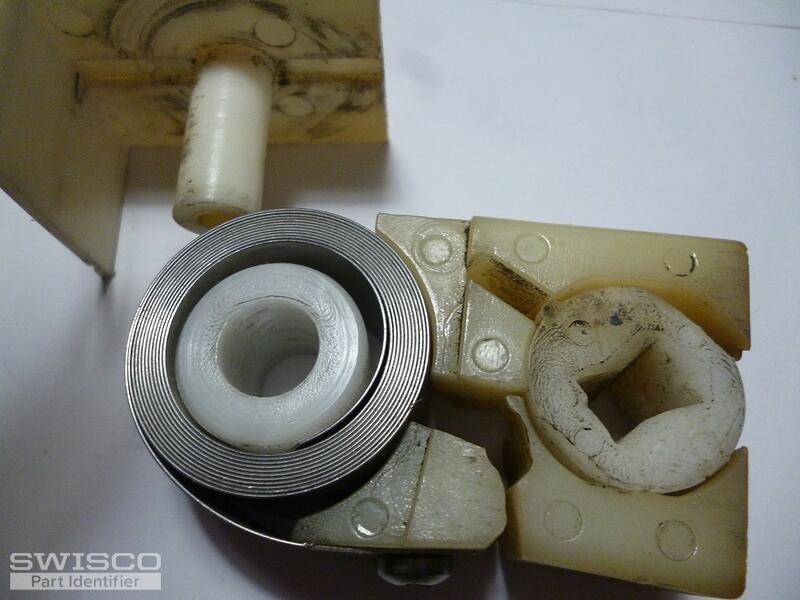

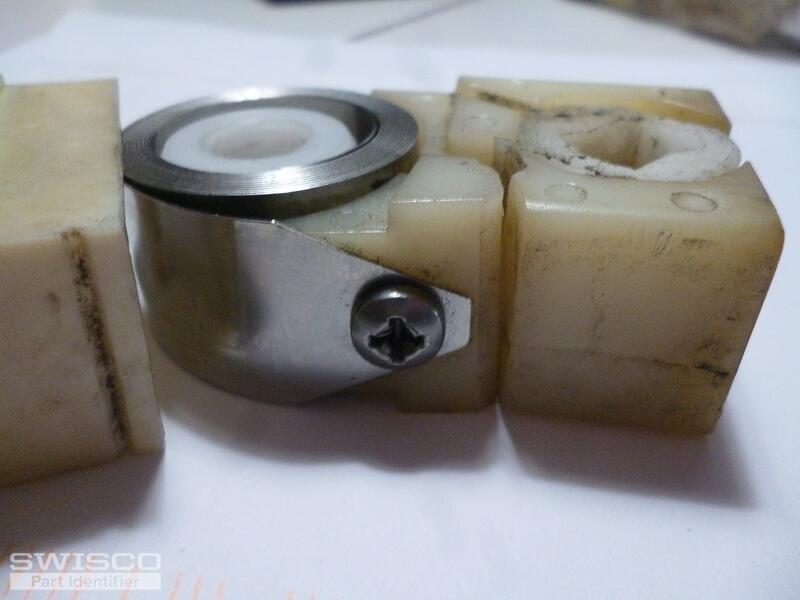

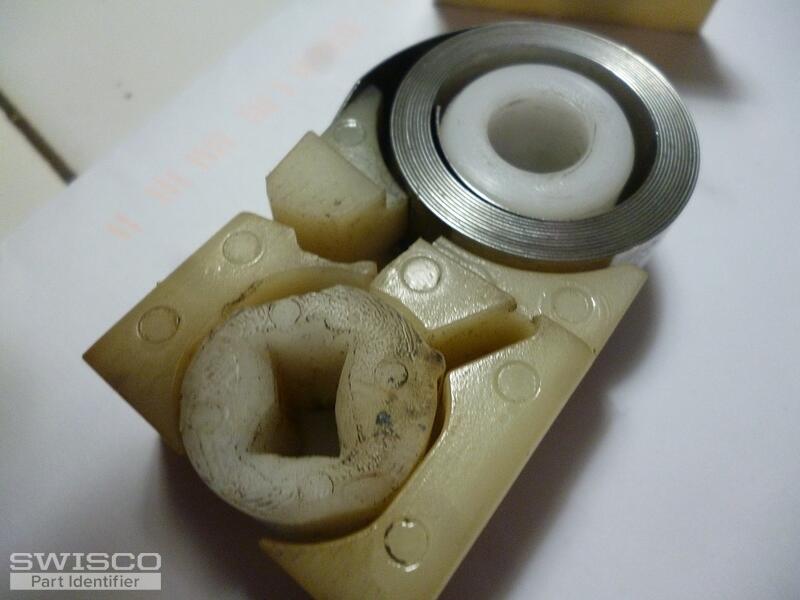

My windows were installed in the early 80's. I believe they were LUX brand. The part shown has broken on 2 windows and I'm hoping I can get replacement parts. Pivot Shoe and Coiled Balanced spring (#407 is etched on the coil spring). The spring cover I believe is 'wide' I don't see any other marki ... (cont.)

I cant seem to find this part anywhere. i work as a maintenance for apartments. And it doesn't have any # to identify.

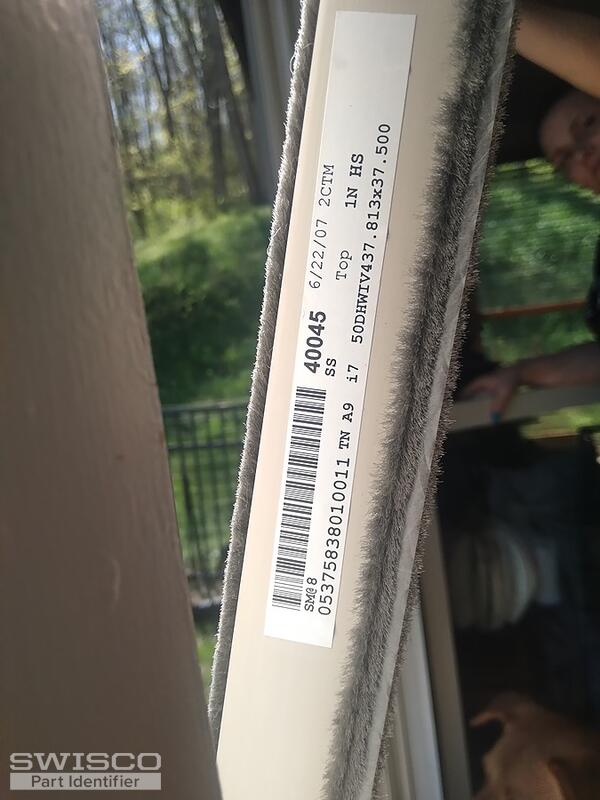

Please see the pics of the labels on the top and bottom sash of a Simonton window from the 90s. The coils are broken but I believe the balancer cartridges are OK. Do you have replacement balancers or coils for these? If labels aren't enough info I can get you visible glass measurements or overall s ... (cont.)

Can you please identify this sash spring so I can order a replacement? Thanks

I am looking for a support shoe for a prism platinum double hung window that I bought in 2002. The part in picture is the broken piece. The right half should fasten into the coil. It measures one and a half inches high on the left side. It is 7/8 wide and 1 3/8 across

Looking for a replacement for this part attached.

Looking for window balancer on double hung both sides and top window latches for both sides... I can not send pictures of shoe it is no longer with window...previous pics of Simonton window is all have available... could you show me what options you have?

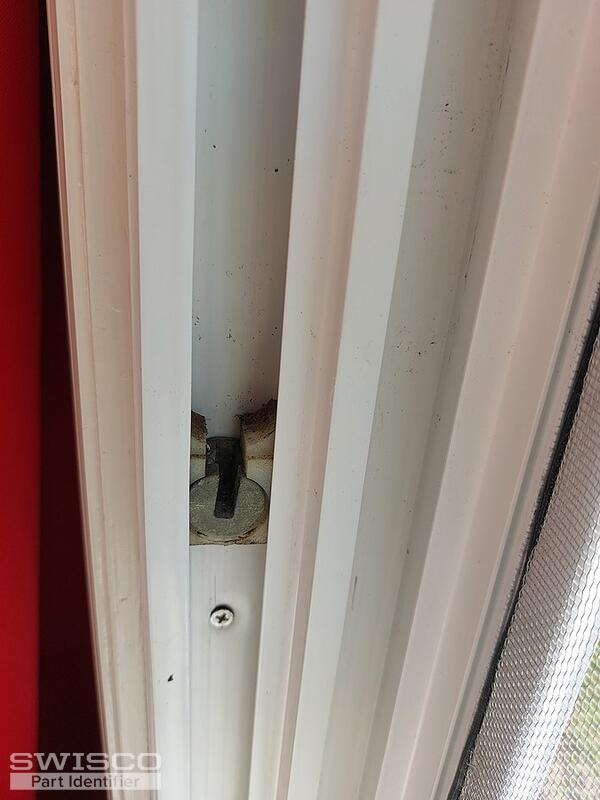

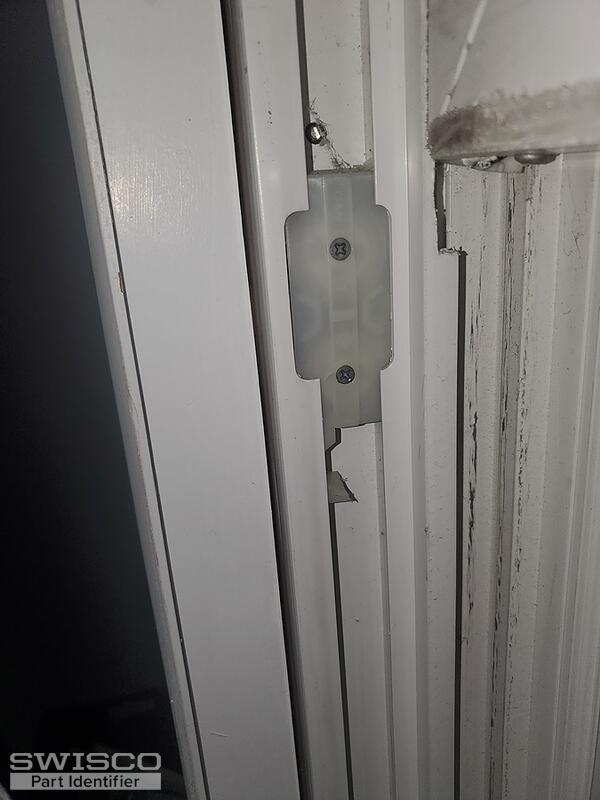

Both my right and left internal balance, pivot shoe and sash stops broke on my simonton double hung window.

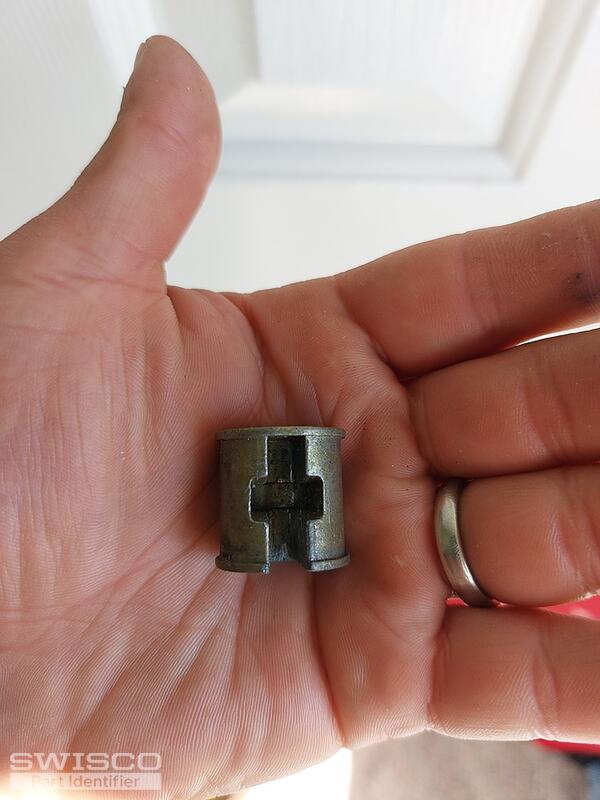

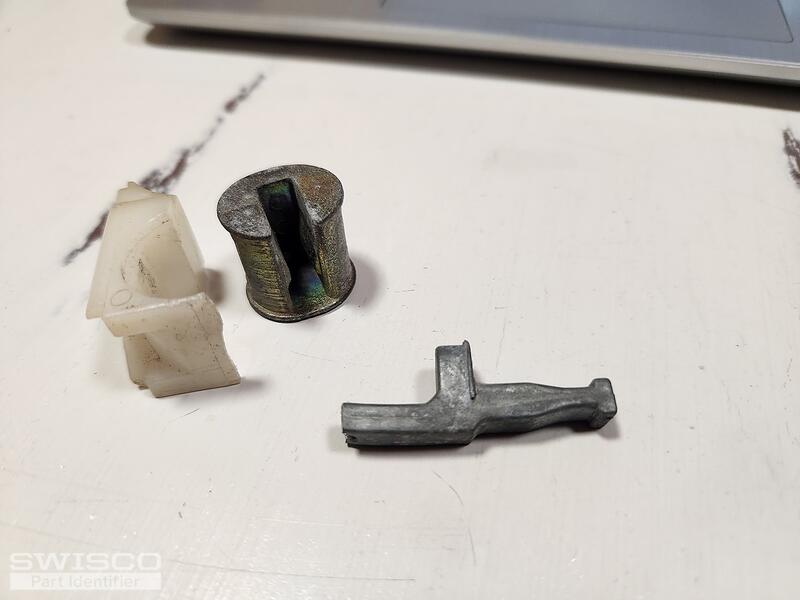

Hello and I'm looking for some help. Moved into a home and some of the windows have incorrect hardware. The correct cylinder part has the engagement area in the center of the cylinder. What's currently in place has the engagement area at the back end section of the cylinder. I would like to replace ... (cont.)

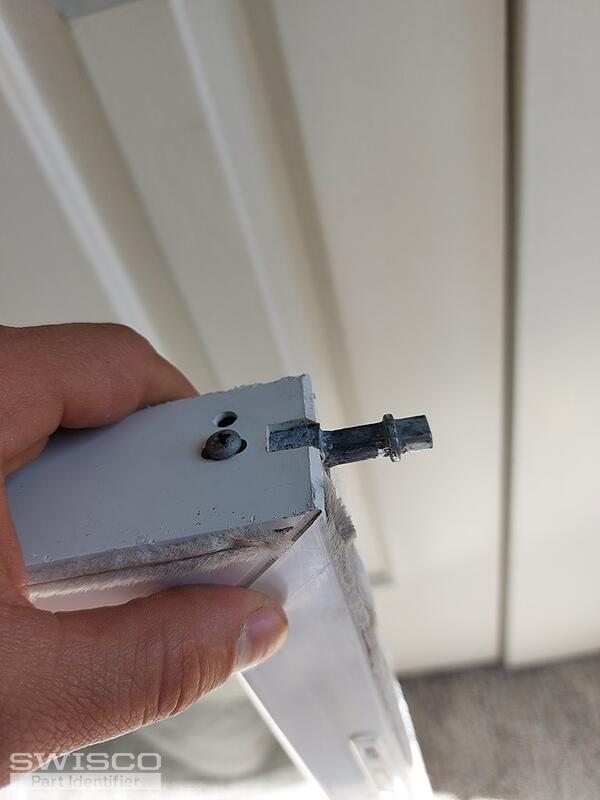

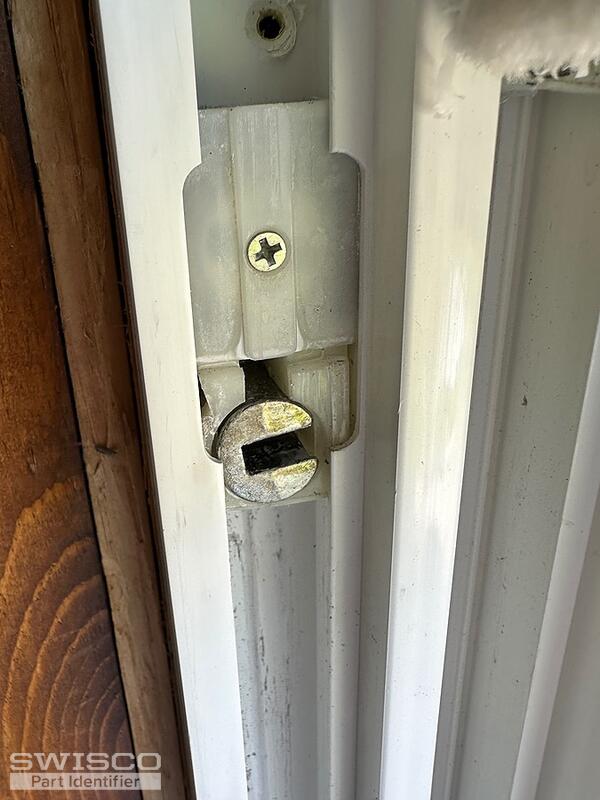

Which parts would you recommend in order to replace the entire coil balance assembly or pivot shoe only for the simonton double hung window in the picture. May need new pivot bar as well to fit new pivot shoe? Thanks!
