Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

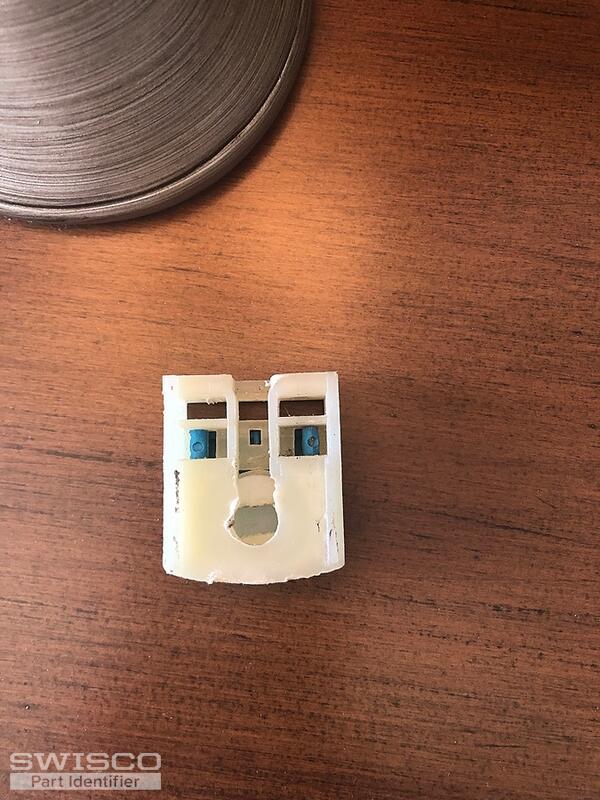

I found this post when searching for my own part that has the same numbers on the coil support. "The numbers on the white piece above it are 5.232.208 & 5.365.638 need replacement parts." The reply doesn't recommend a replacement coil support. The only recommendation I see is for the pivot shoe a ... (cont.)

Believe this is a dimension 1 model. Side shoe has damaged cover and needs replacement. Pictures are from undamaged side. Springs are 1mm wide and 3mm in diameter. Also need window latches.

Hello, I am looking for the correct balance hardware for these MI Homemaker II windows that were manufactured in 2009. The window size is 29 1/2 x 53 3/4.

Hello Team, I need help in buying Simonton window balance assembly. Could you please advise where can i get parts ? All the required pics are posted here. Also let me know if you need more info. Thanks Bhupen

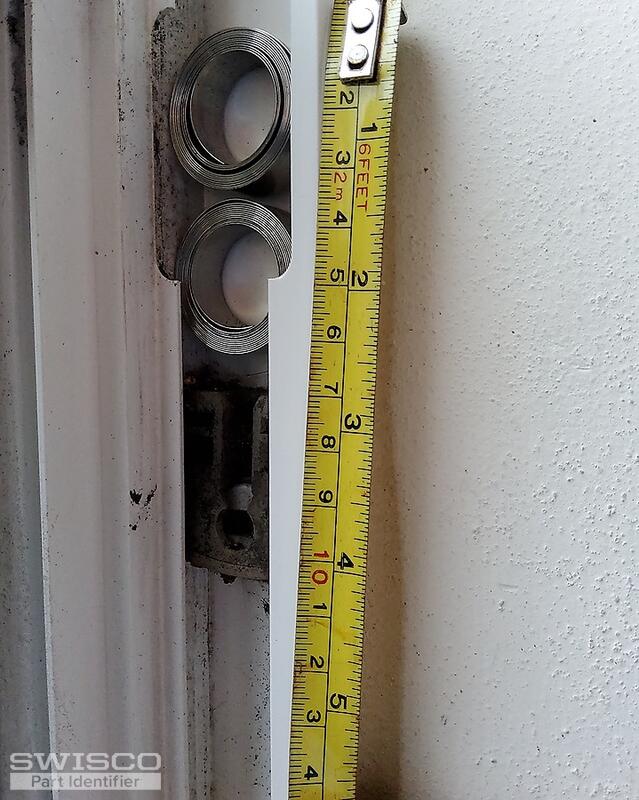

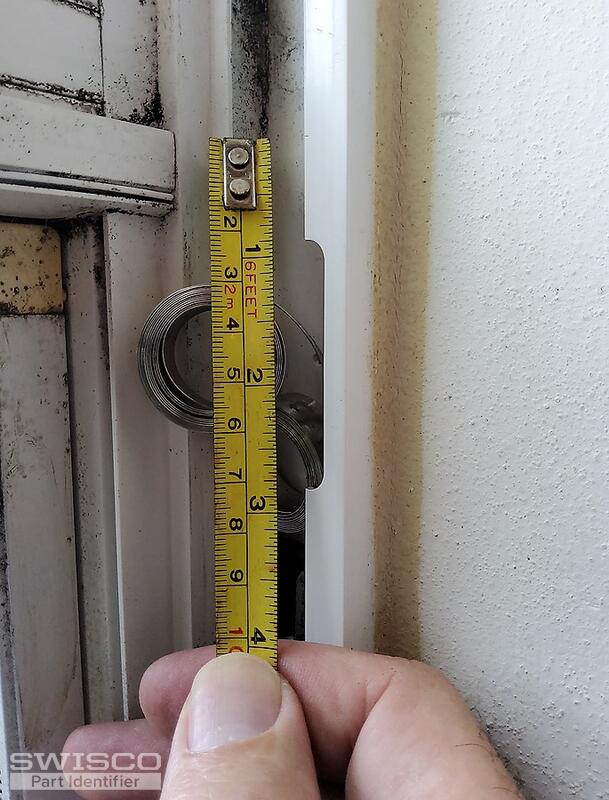

The spring unit is 4.5 inches long. There are no markings on it. Installed in 2002 when house was built. The coil cover allows the sash spring clip to slide over top of it. If the coil unit is too thick, it will catch on the spring clip and prevent the window from opening. The sash weight is 21 poun ... (cont.)

Hello, Need assistance identifying the correct replacement parts for a Simonton Double Hung 35.5 x 53.5 Contractor Series Window from 2005. I believe I have the correct Tilt Latches identified?#26-243 (LH) and #26-244 (RH) ? need 2 of each for top and bottom sash. I also believe I have the corre ... (cont.)

I have several windows that need replacement to keep the windows up. The pictures I am showing belong to my morning room. I do noticed that in my bigger windows upstairs, the top gadget is the same but the bottom pivot foot has three metal rings coming out it. So does it depend on the size of the w ... (cont.)

Hey there - 2004 simonton install, and the sun/age has finally nuked our coil guard. pictures attached show a pivot shoe that I cannot seem to identify on your parts site, as well as the coil guard that fell apart. I do not see the 3 rings of coil shown here either. I also need the right tilt win ... (cont.)

Stamped on the cover: Part# 801020, Patent #'s 5.232.208, 5.365.638.6.584.644 B2 Coil is 1/2" wide, cover is 3" long and 1 1/4" wide Stamped on coil is #3.5 35" P First photo taken before I removed it from the window.

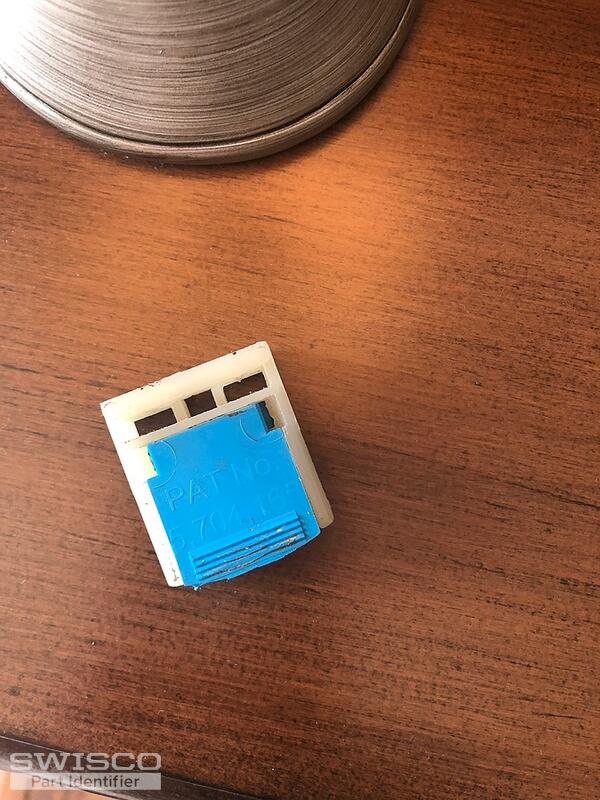

The Pat number for the block is 5.704.165 The window is Monton. I live at Del Webb in Huntley IL Can you tell me what I need to replace these?

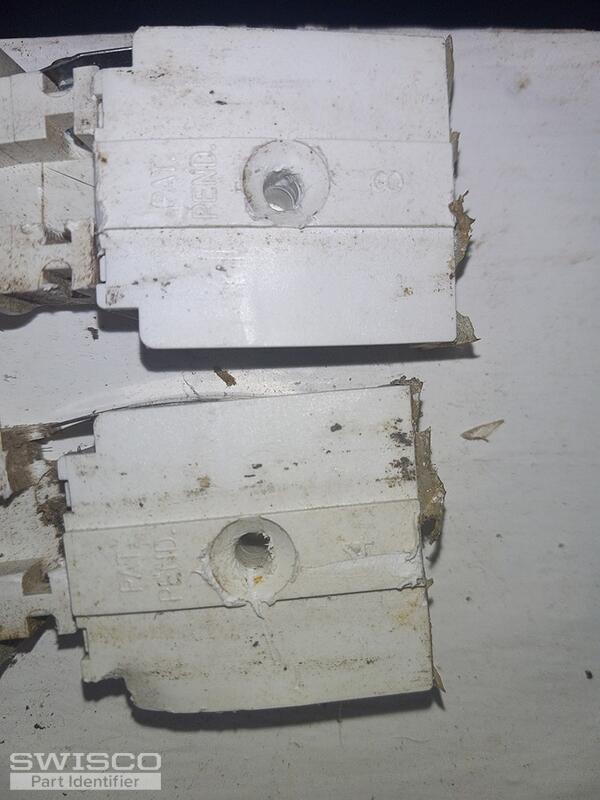

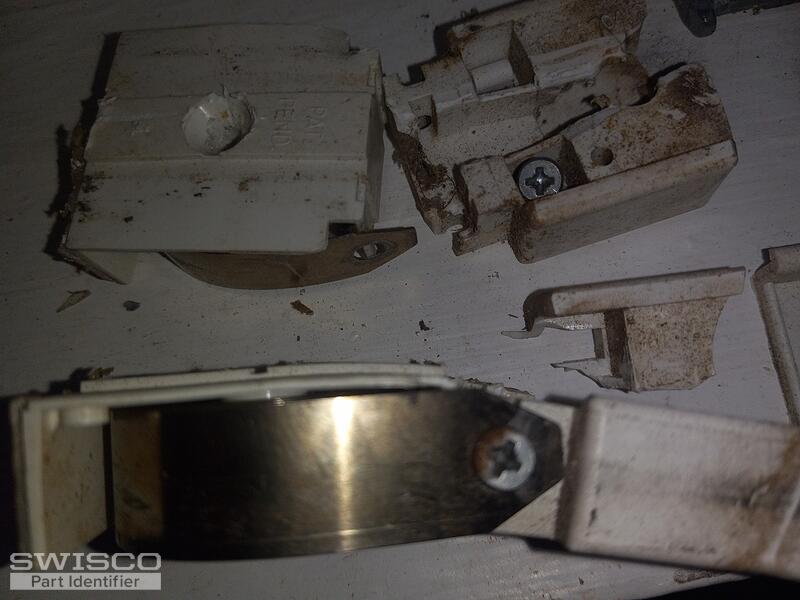

I am replacing the quick tilt assemblies inside one of windows that is completely destroyed. I need to know what parts I need. Please see pictures and advise. Please note that the casing around the springs have the number 4 on one casing and the number 8 on the other.

Please help! I have a series of windows in my house fabricated by a local manufacturer who is now defunct and they all use coil window balances. They have been snapping one by one.Here is a picture of one of them: the coil "tape" measures about 1/2" across. One the plastic white cover for the coil i ... (cont.)

Where can I get this balance coil/window spring balance for my window?

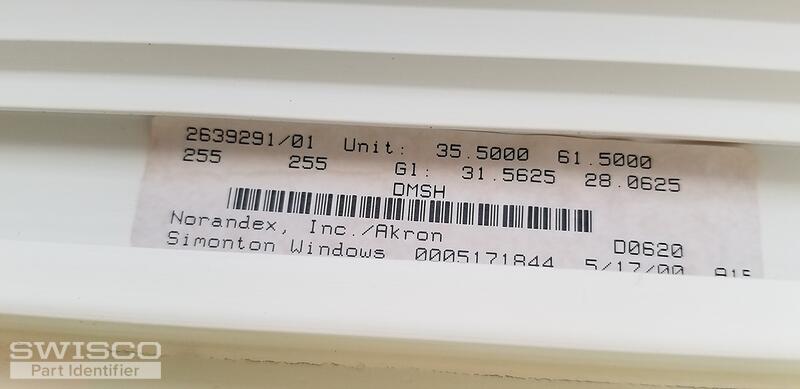

Hi,I'm looking to replace springs and plastic covers on my Simonton dimension 1 windows. House was built 2000 and all springs are broken now.Would you please tell me which parts do I need to order or what other info's do you need from me so you can tell me exact part numbers and the price.Looking fo ... (cont.)

Simonton h-r25-48x80 single hung series 40-17 window coil covers are sun damaged and deteriorating. At least 8 need replacement, and 2 or more coils may have been damaged by forcing the windows open and/or shut. what parts should i order?

The inside right side pivot shoe broke. I need to replace it. It has radiance name on window by lock on top.

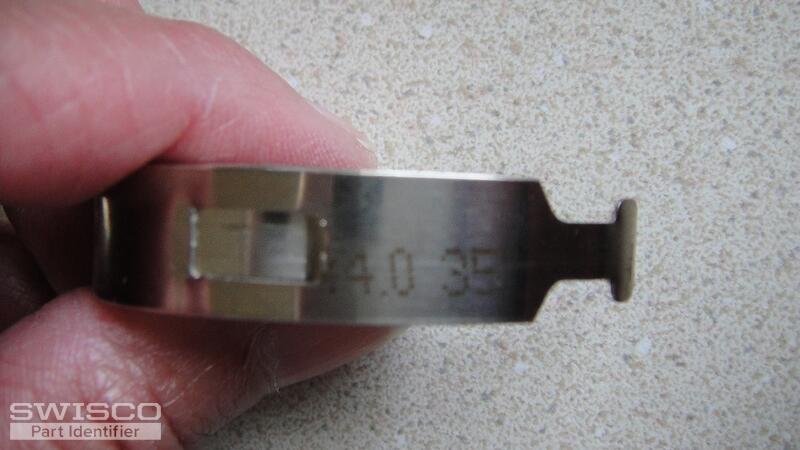

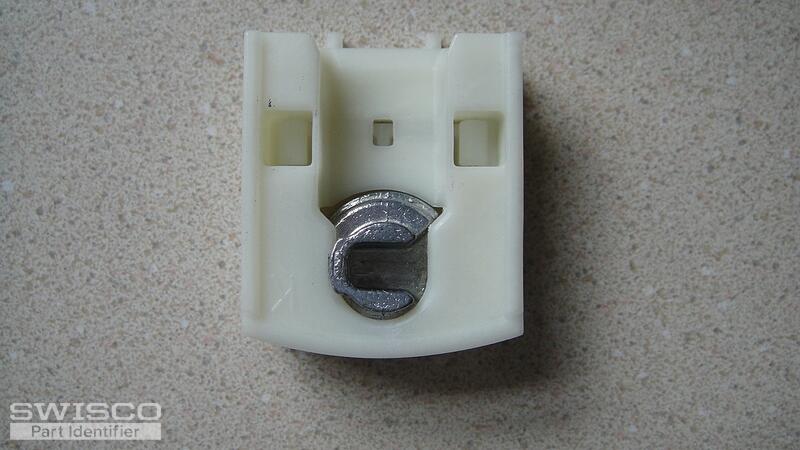

I need to replace the triple coil balances in my windows but not sure what part to get. I have included a picture of the old coil balance with the #4.0-35". Can you please tell me which part replaces that. Thank you.

Window is approx 29lbs. Coil spring - 3 springs each side - #5.5 5". P - 232208 - Aug 04 Coil spring cover - part # 801030 Pivot bar - 3" - seems to be 26-378 from your website? Need help identifying part #'s to place order. Thx

Hello, I am from the UK. In our house we have sash window and the bottom sash coils have broken on both sides (the window weight is roughly 26kg/57lb). I understand from my research that the stamp numbers on the metal have to be 2x9 and 1x8 (if i have read this correctly? Please let me know). Do you ... (cont.)

I recently ordered a triple coil balance and installed it, but the shoes are too big and when the window is installed the window wont unlock the shoe. The picture I have attached is what I am trying to replace. Please tell me what I should order because the coils say #5 #5 #6 for 26 but that seems ... (cont.)
