Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

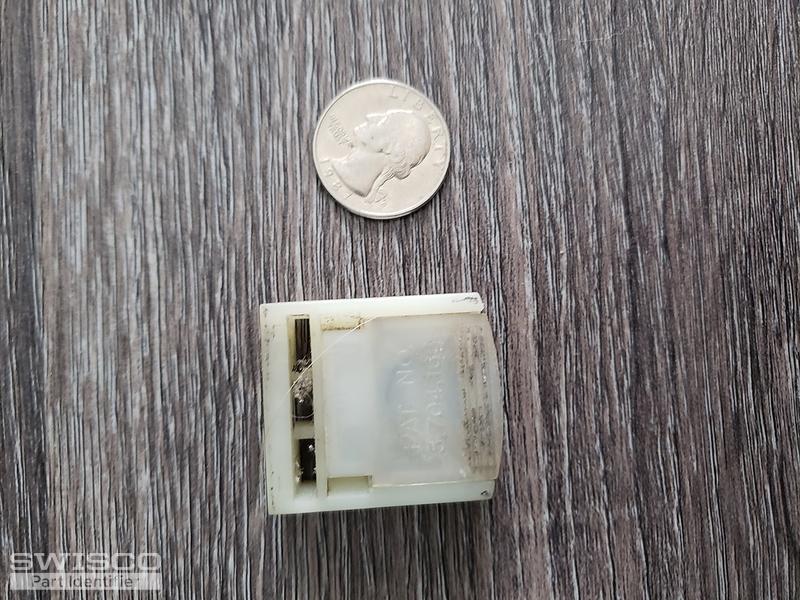

My windows are made by Simonton. I'm looking for the window locking pivot with markings, "PAT no. 5,704,165" on it and the balance cover, spring holder with "3/8 dual" written on it. Thank you. Sean

I also need the cover for the coils. It says #5 with the pattern number on it, the one in the picture. The second coil is a copper color and they attach to the pivot shoe. I sadly need the coils, pivot shoe, and the picot

Need to order 4# Series 165 Egress coil balance and Pivot Shoe, 17/32" thick

I have a venal window that is missing everything except the shoes, and I am trying to get it back in working condition. The opening sash is 41wide x 35tall x 1 3/8 thick and weighs 28.6 pounds. Attached are pictures of the shoes, tag, and measurement from the bottom where the sash rests up to the cu ... (cont.)

Need to replace broken/cracked balance cover and shoe. Picture depicts the other side of window which is not broken. Not sure if I need to replace the coils, any suggestions?

Their is 3 coils in each pack, the whole unit is 4.5 inches long x 1 1/4 wide. The shoe is 1 1/2 H x 1 1/4 wide. Sash is 33 w x 30

Broken steel band connecting to shoe

Need to order part(s) in attached photo.Thank you,Brian

Hello,I am looking for the complete set of the Simonton window coil balancer replacement.Both side of the window broken.Could you please help to find the correct parts to order?thank you very much for your help.Luciano

I am looking for repair parts for my windows thanksNumbers found on coils 5.035 PAT5232200 OR PAT5232288

Could you please identify this part? I need to order two and replace, if possible. If you have the part, will it also come with some type of installation instructions?

TRIED UPLOADING JPG OR GIF PHOTO'S BUT WOULD'NT TAKE IT. SIMONTON DOUBLE HUNG WINDOW 2012 SM@8 01545982190001 TN A2T i8 70004 4/10/12 2CTan M Bottom 2N HS 7WDHWI33.313.23.563 NEED REPLACEMENT PART

I have a window with 2 broken parts. The first is the small plastic assembly with what appears to be a round metal weight which slides up and down in the window frame and the second is the small spring loaded clip that holds the top of the lower window into the frame. The dimensions of the clip are ... (cont.)

I am looking for replacement coil balance hardware. The windows are builder grade, with no marking that I can find. the window dimension is 58" tall X 35" wide. The lower sash is 30" tall X 35" wide. The coil support is 4.5" long, and 1.25" wide. The brake piece is 1.5" tall X 1.25" wide. The ... (cont.)

Hello!I?m in need of replacing most of my spring coils in my windows. I?m not exactly sure which parts I need so I took pictures of them. Can someone please help?Also. Does it look like I need to replace the coils. I don't want to replace them if they still are useable. Thank you! ... (cont.)

My fireman window when pulled out to clean does not slide evenly. It appears the plastic slide is cracked and no longer connected to the actual window. It just stays in the track and does not move. Both of my big windows are currently having the same issue. Please help

Can you match me up with a part? Thanks, Tom

I need to replace coil balances on double hung vinyl windows.the cover are completely deteriorated with know markings. Their are two coil springs on each side. The markings on coil springs are # 5.0 35". PAT 5232208 The locking shoe is 1 1/4 wide , 9/16 deep.If you could help me out anyway with thi ... (cont.)

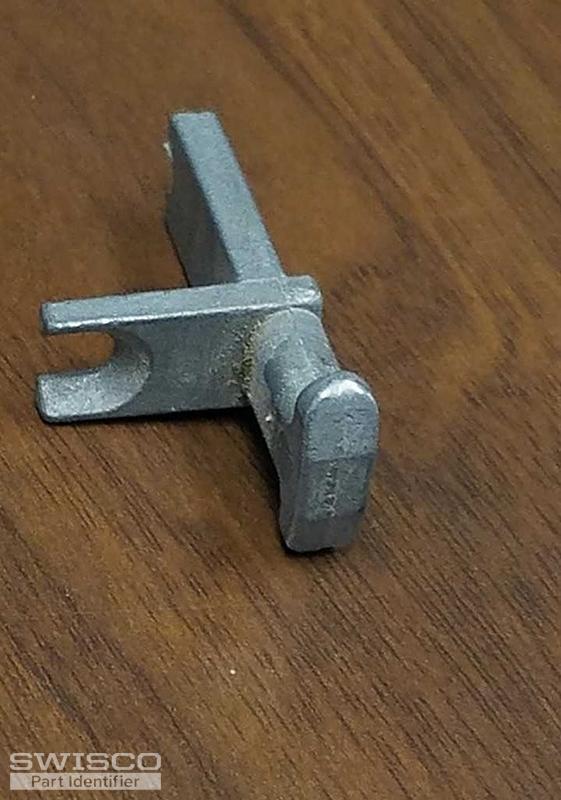

Pivot bar for a double hung possible "four jacks" system in need of replacement pivot bars and balancers Thank you, Kevin

Part #801020 is broken on left side of window & contractor wants me to get same part for right side of window.
