Viewing all customer Discussions for:

15-228 Pivot Shoe, 17/32" Thick

There are 2 numbers on the coil there's a # 9 and 2208. On the white plastic piece that the coil goes into there's a bunch of numbers. They are from top to bottom, Patent #'S 5.232.206 9.0 LB 5.365.638 6.584.644 82

Not sure I am using the correct terminology....But the aluminum pin and the sliding plastic piece it plus into are broken on the tilting bottom sash of these double-hung windows. They were purchased in 2009. My documentation calls them "LBL Finale" and "Cascade/LBL 9100 Series" The windows sashes ... (cont.)

Help both sides broke

It's about window balance

I am trying to find two replacement window channel balances for the window in the attached photos, and any instructional videos you may have.

I can not find an exact duplicate of this particular hardware on your website, can you assist me please.Thank you, Ed

Please give me a call Don

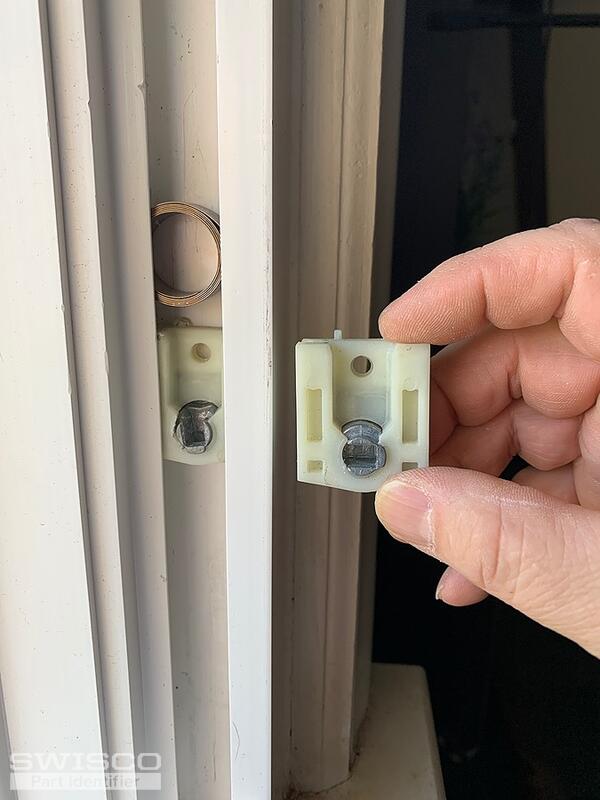

Hi, I need to replace the pivot coil system and pivot shoe in the attached photo. I have not yet removed the old ones. The width is 1/2 inch. Can you please advise which replacement parts I will require for this? Also, should I cut the opening or use a spreader?Thank you,Ed

Unable to get part out to identify the part

Hi these Plygem double hung Type 1000 DH windows were produced in 2011 looking for replacement surface mounted window tilt latches approx dimensions 2 5/8 by 5/8 I can't tell how deep they are. Also needing new coil balances as shown in the pictures. The numbers on the white cover are 5 365 638 and ... (cont.)

I am trying to find a replacement coil balance and wondered if this is one of your units. I found 2 numbers on the coil cap 1)5.365.638 2)5.232.208 I don't know if that's helpful

I need both left and right window coil balance replacements including the pivot shoes and standard support. Pls help. Ty

Good morning,Looking to purchase pivot shoes and balancers for this window.Thank you,Will

i am looking for 2 window balance as shown in the photo they have a #30 on them and are in American Craftsman window.

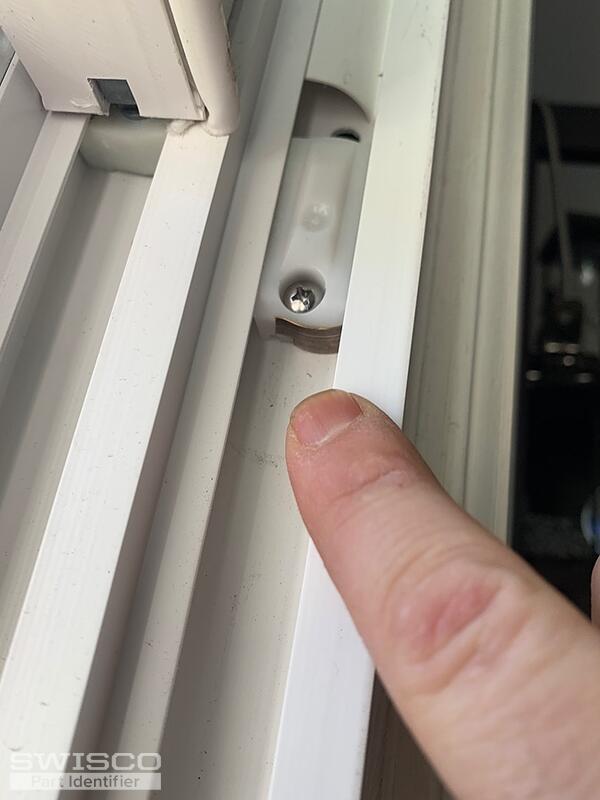

I'm looking for this pivot window lock in photo I posted do you have this kind thanx

Good afternoon, Not sure how many coils for this window. About 21 years old, vinyl replacements. No markings found on either top or lower piece or the spring. I would guess single coil. Spring width is 0.5 inches, lock / lowner end has a 'T' and a round 3/16" hole about a half up the coil. Would ... (cont.)

Can you please help me find the correct parts. I have 4 coil balances on my windows, but I only find 3 coil balances in your catalogue. I am not sure which pivot shoe is the correct one. The window weighs 62lbs so assistance with the correct weight is also needed. Anything you can do to help will bw ... (cont.)

Need ID number to order coil spring holder assembly Length 1-11/16 Width 1-3/16 Depth for two half's assembled 9/16 Fastening hole distance between two screw holes for two joined coil assemblies 1-9/16. Pivot shoe used pt. # 15-228.

One of my coil balances broke and I need a replacement. Dimensions: 1/2" wide, 3/8" tab, at least 24" long. It is marked with an "8" at the end. I think I need a 160 but don't know whether to order a 7.5 or 9#. Thank you.

Both sides have broken the window is from 2007 doesn't have name brand on it need help to get new coil balances I need both pieces that are in photo
