Viewing all customer Discussions for:

75-006 Spiral Balance Charging Tool for Tilt Windows

This is the part we need

I have five windows in my home exactly the same. 64" from bottom to top. Lower window is the only part that moves. And when I open it up, it will not stay open. It slams down hard. I've taken two of the windows apart (ie, removed the balance and pivot feet). I'd like to replace all the springs and f ... (cont.)

I'm assuming I have a 29 inch metal part 5/8 inch thick which would make it a 600 series then I'm also assuming I have a 9/16 inch shoe pivot and then a 3 inch metal pivot bar I think I also need a tool to do the spiral balance charging And I'm not sure if you sell sash stops because I don't have an ... (cont.)

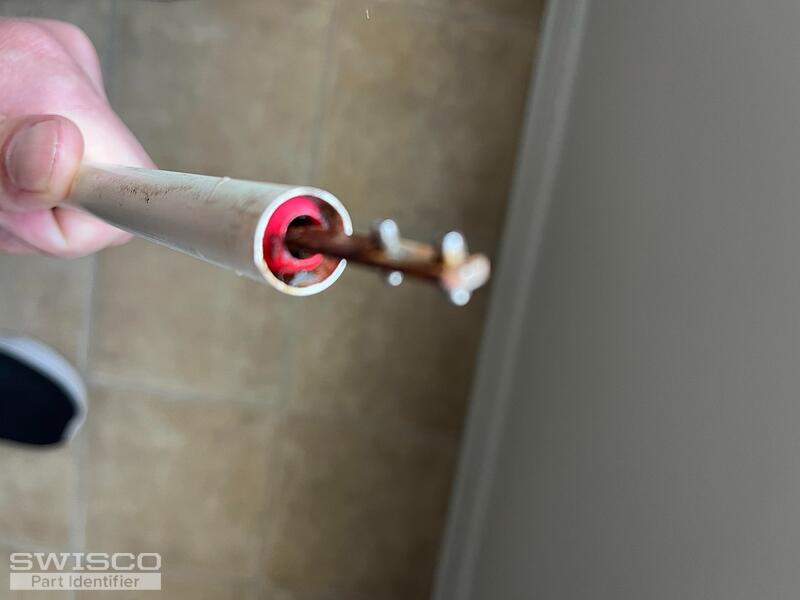

Hello, I have a 1995 Commodore manufactured home with Care Free vinyl windows. They are single hung, top sash fixed, bottom sash tiltable, with 3/8" red spiral balances. I didn't remove and measure everything, but hoping this might be sufficient to identify the correct parts: Balances and shoes and ... (cont.)

2"H x 1 1/4" W x 17/32" thick; connects to red tip spiral balance. Thinking 15-015 is match. Also interested in charging tool 75-006.

Is this combo anything your research department is familiar with? From a large older vinyl double hung window.

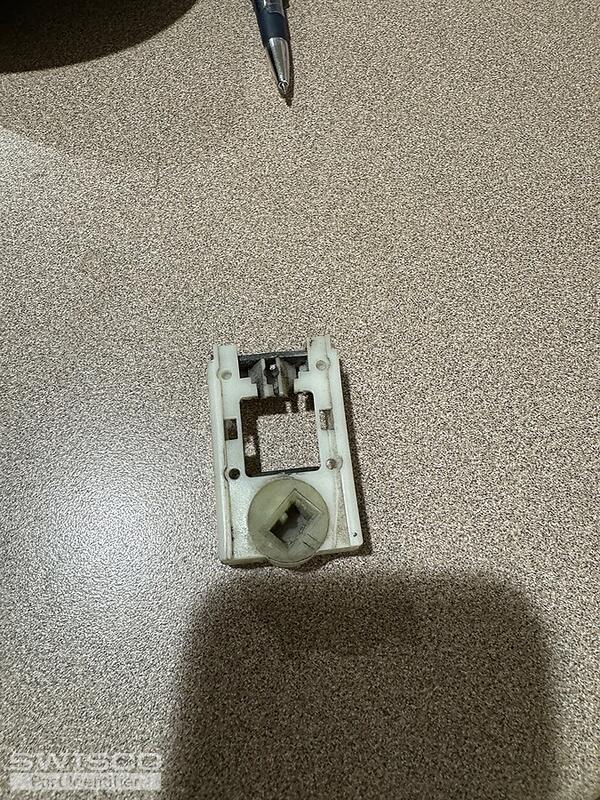

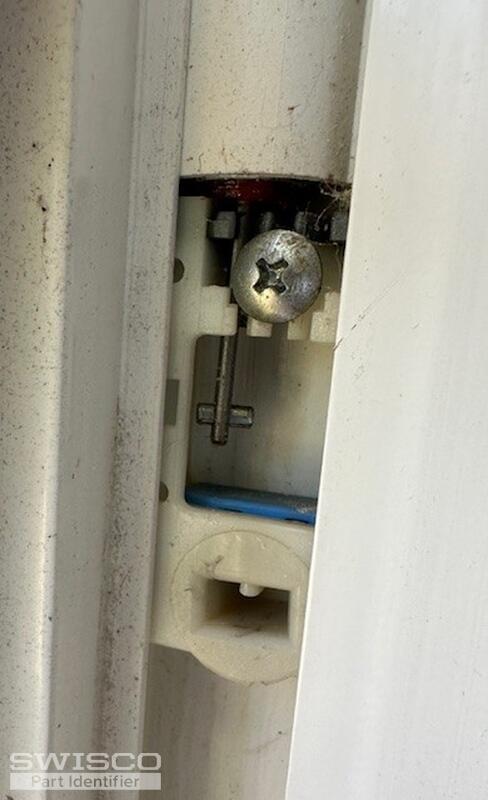

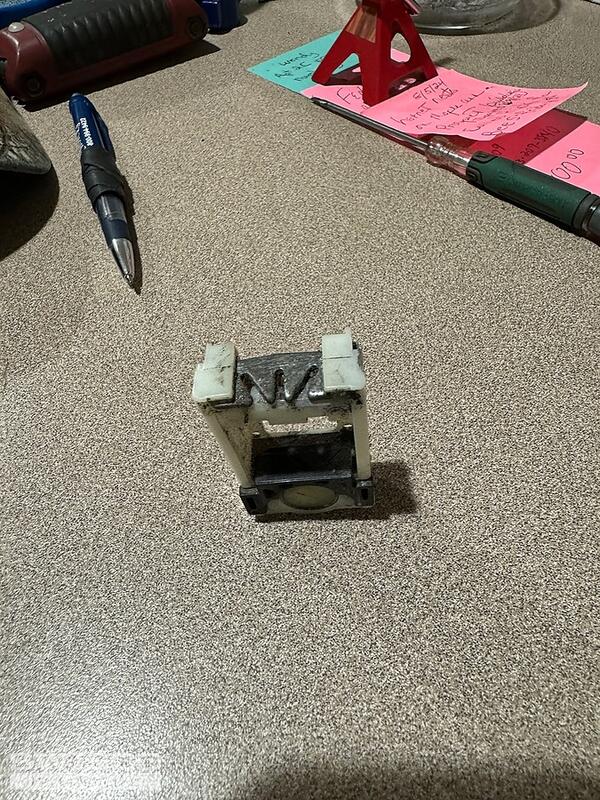

Need to replace this pivot shoe. Spiral balance is colored red. Am not finding a cutout to remove pivot shoe. Is that common? Do I make a cutout near the top of the channel? Thank you, Bernie

Hello, I believe this pivot bar insert is what I need, dimensions look correct, wanted to confirm as well the shoe I picked is compatible, it s 5/8 thickness. Pivot bar stamped " 7073" brand is not known Thank you

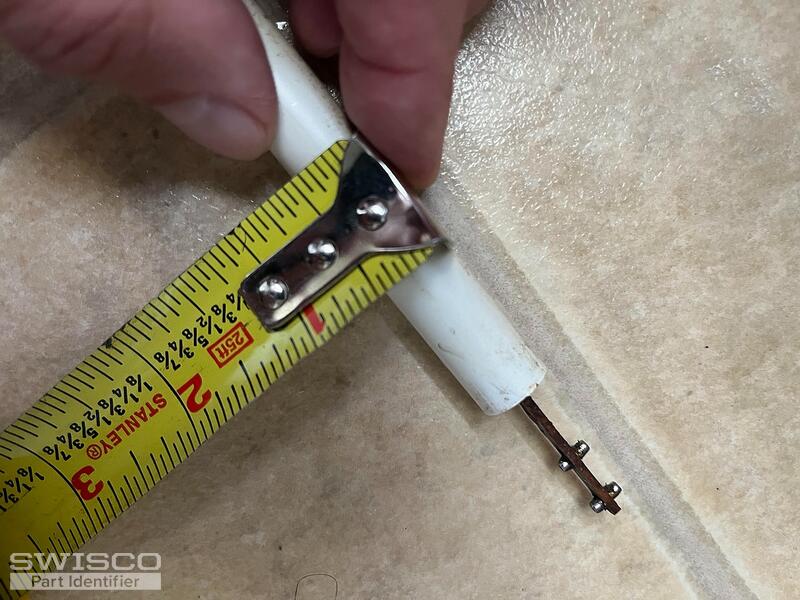

Just measured the tubes on a customer's spiral balances that need to be replaced. The tubes are 3/8" diameter and the length is 17 and 1/4 inches. Blue tip. Can I order series 900 17" balances or do I need to order up to the nearest inch ie: 18" balances. Thanks for your help.

9/16th diameter

Pivot lock shoe with a 1/2" thickness or maybe 5/8. Spiral Balance 3/8 27" white tip.

Hello I'm looking for replacement shoes and balances for year 2000 Napco tilt windows with spiral balances

Hello, Please help me find what kind of balances I must buy for tilt double hung Crystal ThermoBlok window series 2000A sizes 48"x64" and size 30"x64" Thank you, Alex

Hello My top window Wil not stay closed. I'm not sure what series I have.i will also need the tool to charge and install the new balance. Upper window measurement is 23"x5/8 and lower is 25"x5/8. I would like to replace all4 with the tool can you please let me know what part numbers I will need. ... (cont.)

The windows are at least 20 years old. AlSide Geneva double hung tilt-in. I have plenty of pivot rods. I just included the image to show how it locks into the shoe. I cut the vinyl per your video to remove the Pivot shoe. It measures 9/16" deep thick until you get to the pivot point then it is 5/ ... (cont.)

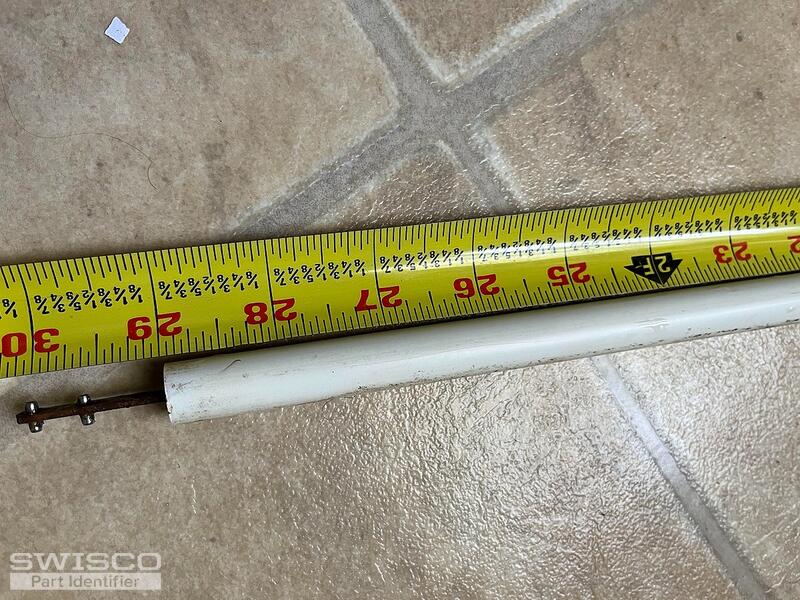

Hello,28" spiral balance replacements (pair) are needed for a single hung, tilt, Atria vinyl window. White vinyl cavity covers, 29.5", are needed as well. It appears that the 28" Series 600 Spiral Tilt Window Balance, Product Code: S600-28 would work. I'm unable to see the tip color but the sash ... (cont.)

Hello, my house has spiral balancers on the double-hung windows, 30" long and ~3/8" diameter. However, we have plantation shutters installed on the inside, so that while I can get the movable frame to the top of the window frame, pull the releases in and have the top edge tip out, it hits the shutte ... (cont.)

I don't have much information to share, beyond the photos. I find no marking on the windows. I know they are about 20-years-old because they are original to the house, which we had built near Grand Rapids, Michigan.

Looking to match the pivot shoes and balances photo graphed above. Also will need the tool to charge the balance.

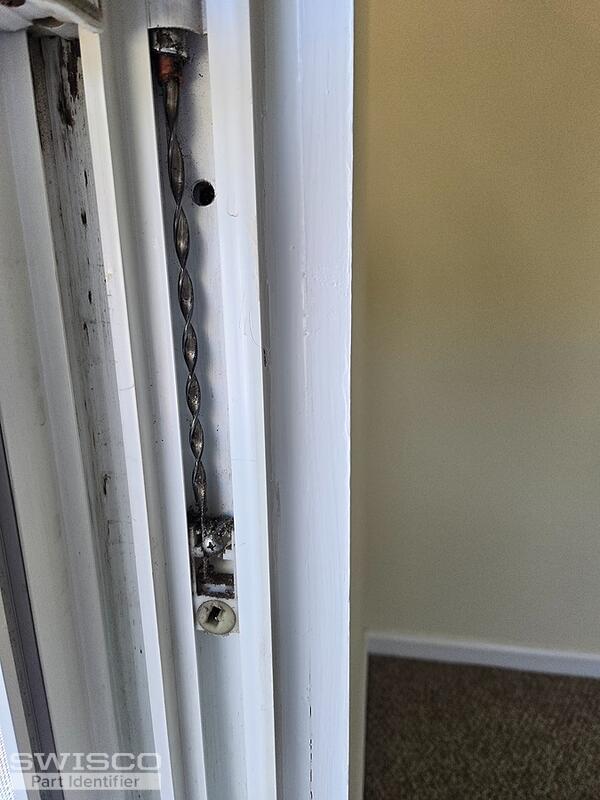

I believe that it is a 3/8 diameter 36 inch balance. The clips on both side have rusted off. The balance on one side needs to be tightened. Photo 1 - spiral balance shoe Photo 2 - bottom sash clip rusted off Photo 3 - slack spiral balance Photo 4 - close up of bottom sash Photo 5 - slack spir ... (cont.)
