Viewing all customer Discussions for:

S165-4 4 lb Series 165 Egress Coil Balance

Can you help me find some of these? I need a bunch!!

Simonton h-r25-48x80 single hung series 40-17 window coil covers are sun damaged and deteriorating. At least 8 need replacement, and 2 or more coils may have been damaged by forcing the windows open and/or shut. what parts should i order?

I'm looking for the correct replacement parts for my simonton windows. Need the coil springs with cover and new tilt out plastic latch pins. Please help.

The make of the the window is The Window Factory, there's 3 coil on each side with the #4 stamp

Need part number

#4.0 35" on the coil

The plastic portion that screws into the trim has broken. Looks like a triple coil balance but I'm not sure. I can't see a part number or weight spec either. Any help would be great!

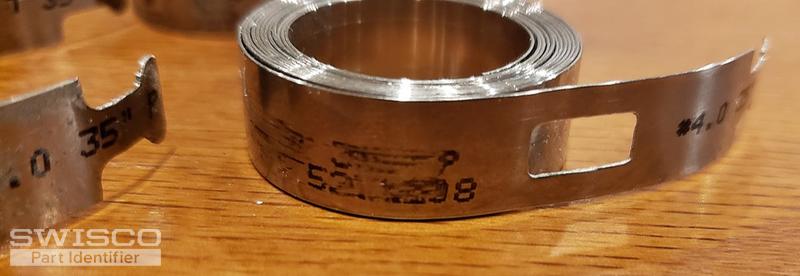

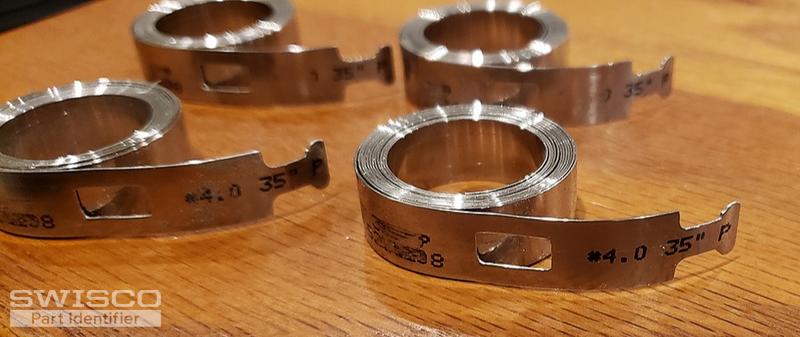

Please help me to identify the correct parts. I cannot find any words on the coil spring cover (no band name, no part number). I only find " #4.0 35" P " on the spring as shown in the picture. The coil spring width is 3/8". The coil spring cover (support) width is 1 1/4", the length is 4 1/2". The ... (cont.)

I have some tilt windows, and I need to replace all the hardware pieces. I'm stumped on the spring, the ones on there right now are double springs. The top of the spring assembly needs to be rounded/beveled/sloped to let the tilt catch pass over without breaking the plastic. I pulled out one of the ... (cont.)

Some of my windows have missing or broken ballasts. Consequently, the windows won't stay up. I believe the windows are Louisiana Pacific. Attached are the pictures you requested. The ballasts are actually 3 coil - not 2 coil as I originally stated. The window in the picture is 32" x 33 1/4" Side la ... (cont.)

I need a balance assembly for my double hung window serial number 113-716538. It is a double coil assembly 3.5 inches long, 1.25 inches wide and 0.5 inches deep.

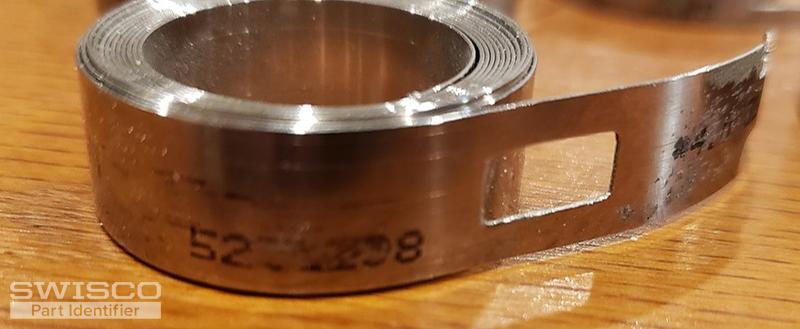

I bought a home and the balances are broken on almost every window. Attached are the best photos I have to identify the parts. There are three coils in each balance labeled pat 5232208 #4.0 35". The bottom part's only identifier is Pat 5,704,165. I need to replace these on 15 windows. Please ad ... (cont.)

Trying to find the correct parts for window repairs. I really appreciate your help on this.

Hi, I need to replace the left side window balance assembly of a Simonton double hung window It is about six inches long. The photo shows the unbroken right side. Patent number 5.232.208

This right side balance Support assembly has broken. Upon inspection of the same windows in my house. I have determined that I need five (5) right balances and three (3) left balance support assembly's. These are completely missing. I need all of the hardware. These are triple coil balance syst ... (cont.)

I'm trying to order a new coil balance. I know I need a triple coil but I don't know how to figure out what lb I need. How can I figure that out? Thank you.

Sash channel balance??

I need the replacement parts shown in picture for 3 windows on each side!

I'm not sure how to remove this, so I took pictures in the window. The window will not stay up, so it looks like the window balance spring is broken. It's a double hung bedroom window. I'm not sure which window balance spring to buy- how many pounds. Would you please advise? The patent I can se ... (cont.)

Per the subject line please identify what coil spring I need for a Simonton single hung window made in 2005 each side has a triple coil setup.I already did order the "6.5 lbs Series 160 Coil Balance" but I have a feeling it might not be the correct one.One other piece of info the width of the spring ... (cont.)
