Viewing all customer Discussions for:

S160-06 6.5 lbs Series 160 Coil Balance

Lower tilt out vinyl sash weighs -23 lbs and is 36" tall so probably need 35" travel. Old balance assembly has 2 coil springs as shown in picture. Springs are 1/2 wide with 5 stamped on one spring and #6 etched on other spring. Pivot shoe pictured checks 9/16" x 1 1/4" x 1" tall. No marking on spri ... (cont.)

on the plastic piece is the number 13.on one spring is: #6.5 35"on the other spring is: 6.5 35"V8W1 Z second line" NOV/30/15/ 6please advise what I need.Thank you Wayne

Simonton and Home Depot can't help. The windows are twenty years old andneed several parts. Hopefully you can identify them. Thank you for your help.

I have double hung windows with with 2 coils to each constant force spring housing. The top coil has stamped on it 6.5 PAT5 8. The bottom coil has a 3 stamped on it. Both coils measure right at 0.496 inches diameter using a caliper. The top coil thickness is @ 0.181 inches. The bottom coil is @ 0.15 ... (cont.)

This window does not stay up. It keep sliding down. The hardware use double coils, each coil is marked #65 35". Do you know if you have replacements for the hardware? Thank you!!

This hardware is from a vertical sliding window, with 2 panes sliding up/down. Total 4 assemblies for this one window. The pictures are from on of such assemblies. I could not find any markings on the plastic casings. The only marking I found was on the coil (see pic) which shows a 9 (or 6). I need ... (cont.)

when i replace both sides, should the spring attach to the different side (inside and outside) of the the bottom part to be balanced on the left and right?

I need both shoes, coils, and triple supports for a bottom sash. The removed coils are marked 5,6,6 that should I believe equate to a the weight value of a 34lb sash, but I put the sash on the bathroom scale and it reads 40lbs. I presently have items sitting in the cart, but would appreciate verific ... (cont.)

looking to buy the sliding hardware, the existing coils are broken. it says #7.5 31" PAT523208 on the coild

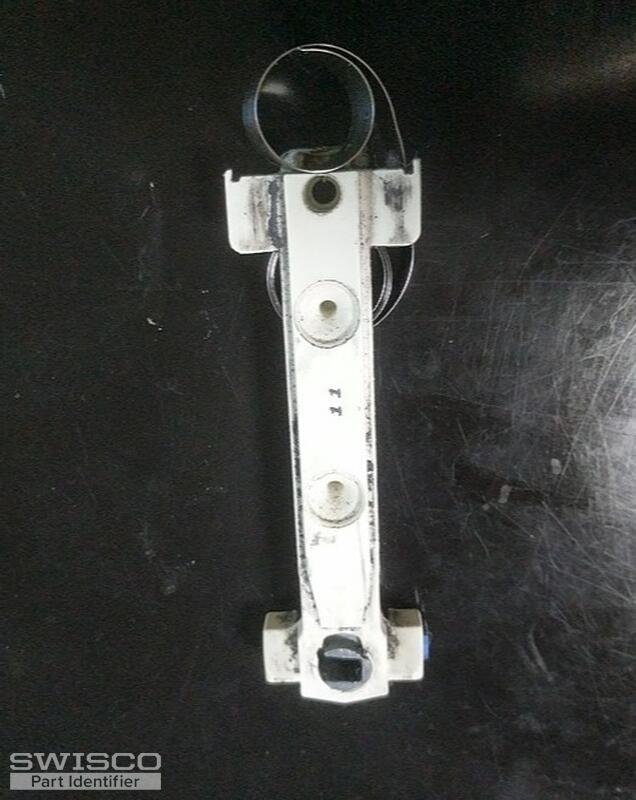

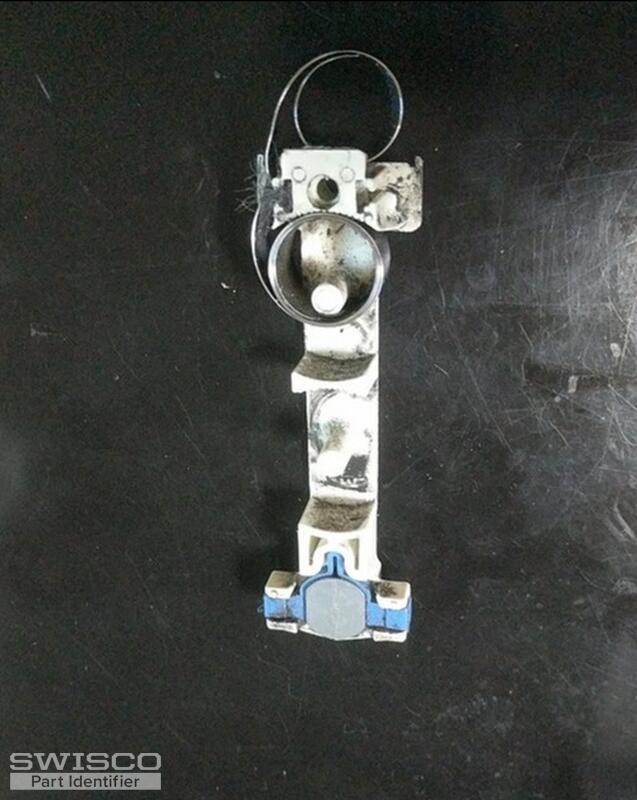

Left and right constant force balance wrotten 12 on top 2

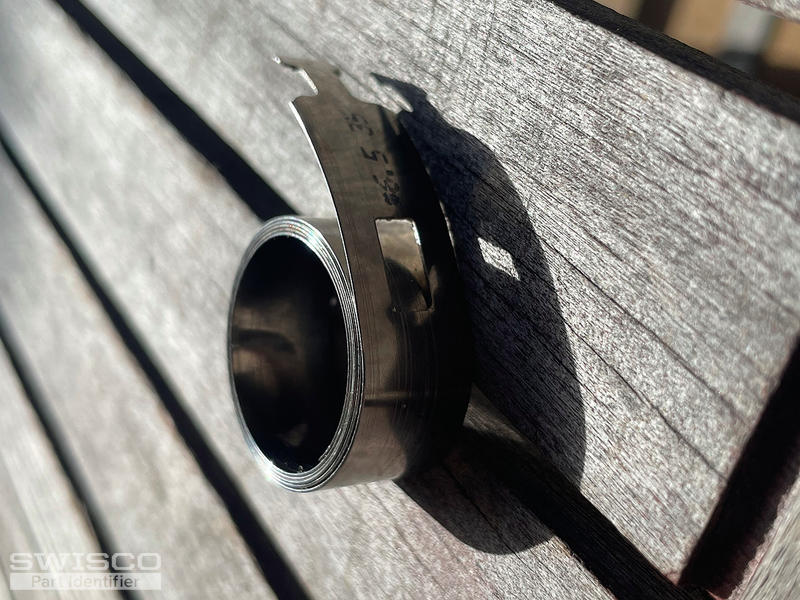

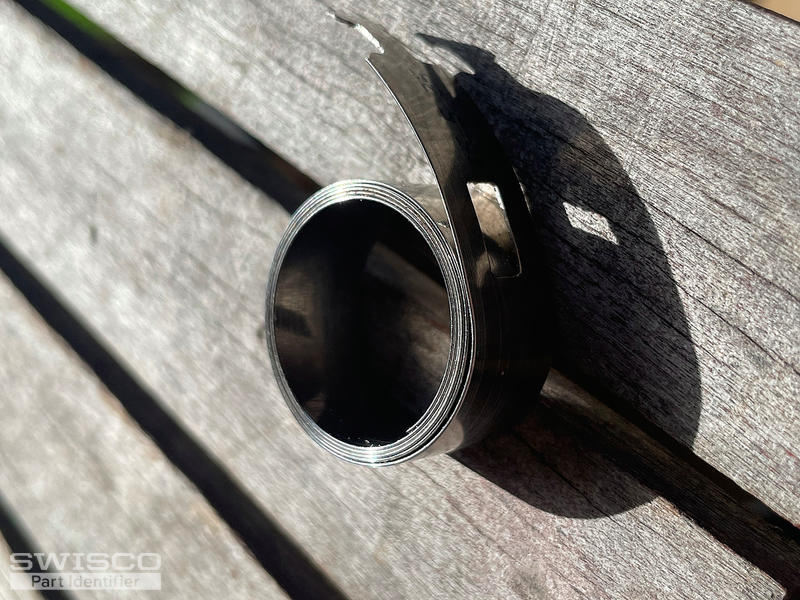

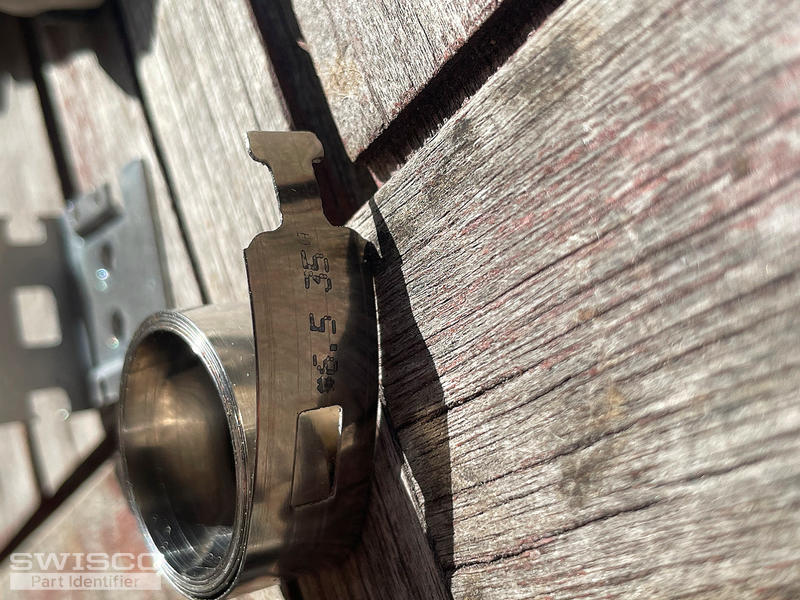

Hello, My bathroom window balance coil broke on both sides of the window. The coil has #6.5 35" P stamped on it. It also has the number 5232208 stamped in the same place. Not sure what parts to order. Please help.

Approx. 20 yr old BF Rich window, 28"x ~48". can't find similar parts on website. The measured depth is 1/2", width 1-1/4". I think it say 6 pounds (maybe 9 if reading upside down), but 6 lbs seem right for size of window??

I would like to know what part can replace a tackle balance for a plygem 1500 series window.

I need to replace my coil balance in my vinyl double pain tilt out windows. I believe both sides are broken the pic I sent is of just one side. It reads x6.5 35" 15:15 SM7 D18 on the side of the coil

model number of window is hr-25 48x80 which I assumed was 25 lbs. one coil clearly says #6.5 and I think the other one says #4.5 trying to figure out what parts I need to replace. I've got several windows with one or two broken balances but a few different size windows so trying to understand how ... (cont.)

hello, looking for a replacement window balance. part number says 5.232.208 on the actual housing (it's cracked) I will also need a replacement coil, the one that broke has the number 6 on it. the etching on the window says 'American Vinyl '17 '

hi-correct me if im wrong but i believe the proper replacement part for the pictured coil balance would be your series 160 6.5 i plan on ordering 25 pieces as well as 25 of the 7.5 i also need a 12 that i dont see listed online....is 10 the largest size number you stock? thank you very much!!! ... (cont.)

Trying to get part number, price & delivery for(see attached picture); Appears spring( #6.5 33")only has broken but would like complete kit if available. Current window is single hung, small bathroom window. Label on window reads; ABC Supply Company / Jefferson, La. / D0180 Simonton Windows 1701052 ... (cont.)

The balance measures 9/16×1-1/4 and looks like a single coil. It's for a single hung window. The bottom sash measures 28w x 23t. I took it apart and put it back together so they could continue to use it. I didn't think to weigh the window . Thank Tony

I have a ten year old Simonton Double Hung vinyl window in which the upper unit has failed coil balances and on one side the pivot bar has broken and a missing sash vent stop. I'd like to acquire the appropriate parts (replacement pivot bar(s), balance springs and while I'm at it, probably good to ... (cont.)
