Viewing all customer Discussions for:

15-192 CertainTeed Pivot Shoe

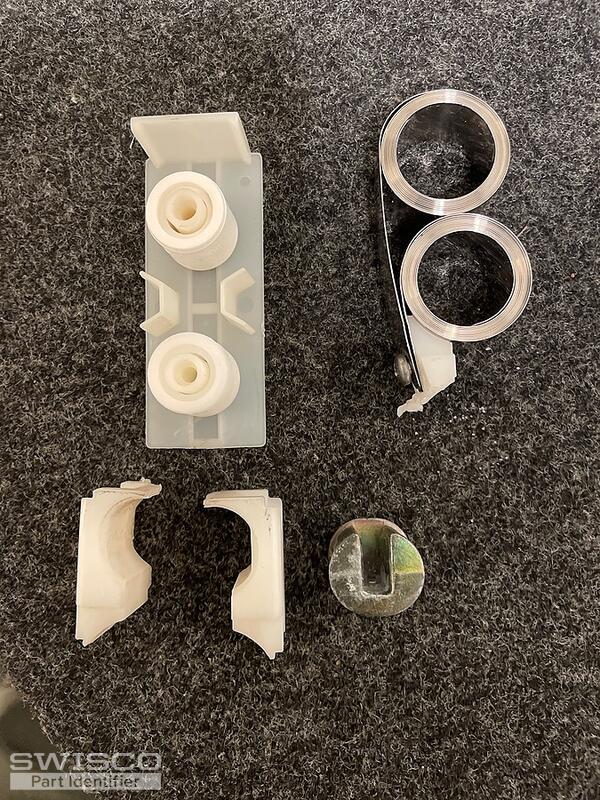

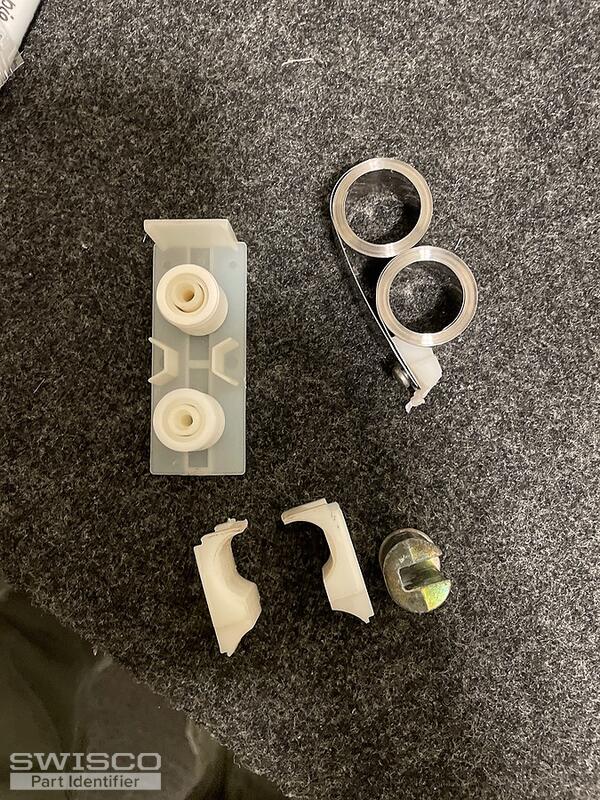

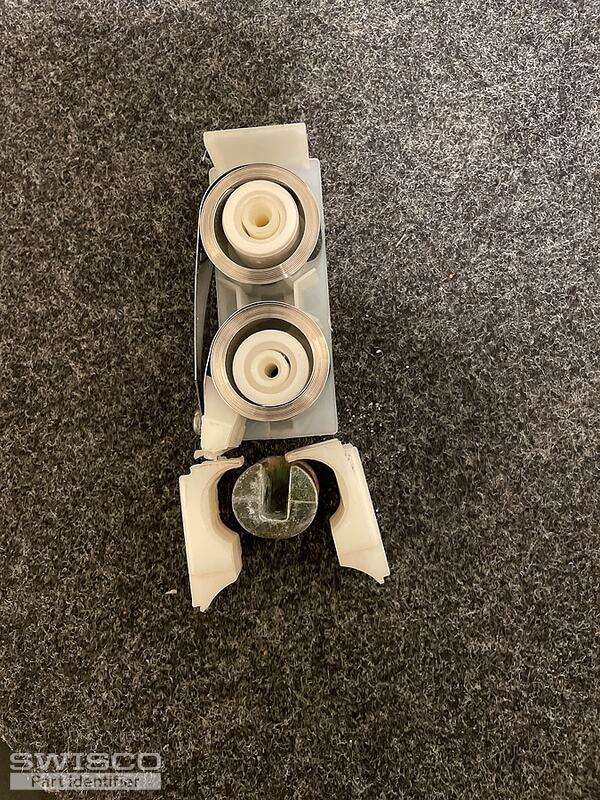

One of the coil balance springs in my CertainTeed double hung windows failed, and I need the parts to completely replace the assemblies on both sides. The pivot shoe and the coil springs are the only parts with numbers - A186160 for the pivot shoe, RA409 for the inner coil spring and LA407 for the ... (cont.)

Hi,I hope you can tell me which parts I can buy to repair my windows. I need a latch, tilt coil springs and the white plastic parts that is in the picture # 1627.Thank you for your answer.Anne

Need to replace balance shoe

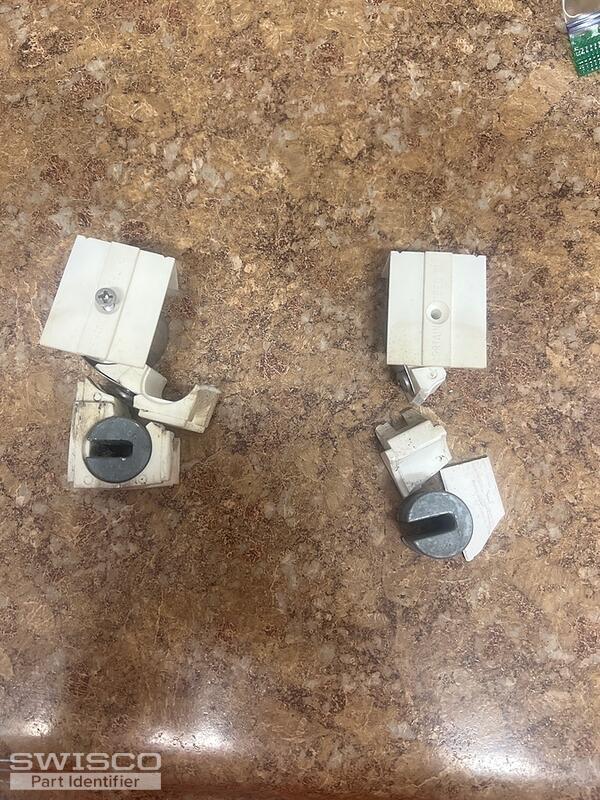

Hello, As you see in the attached pics, the pivot shoe plastic broke (seems to be a common problem as I have 3 windows with similar problem). Studying your website it looks like I have a CertainTeed coil balance system with 2 coils providing for 24 lb force per window. The longer tongue coil has a 4 ... (cont.)

Hello! I have a Sears window from 2002. Potentially relevant information/ numbers from the window: 51164 1cwm Fs il 93dhwi19.563x22.625 Under bar code 03219291050001 2N wH 0O Anyway, I broke one of the tilt mechanisms on the side...I believe it's called a pivot shoe? Half of a white plastic sem ... (cont.)

need to replace both sides

How can I order replacement parts described and photographed above?

my pivot shoe looks like your part no. 15-192 the dementions for mine are 1 1/2in long x 7/8in thick x 1 3/8in wide. will yours work for my windows

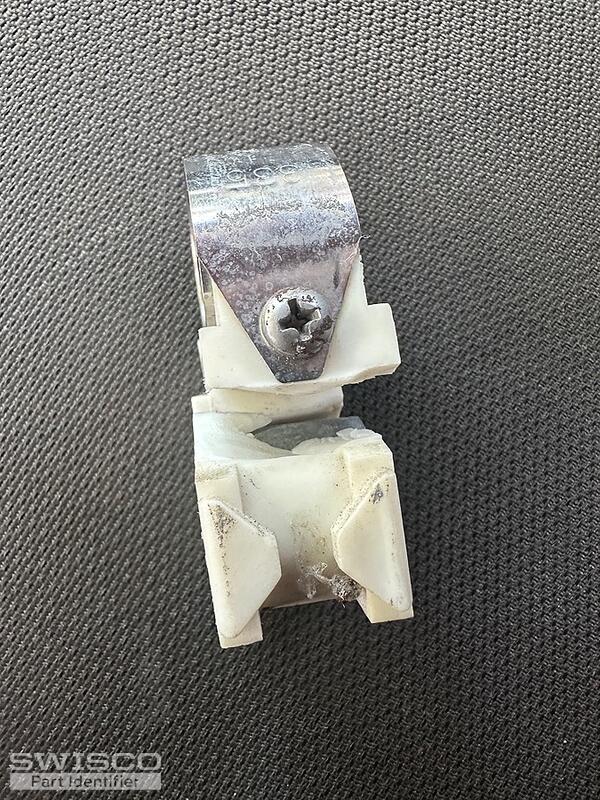

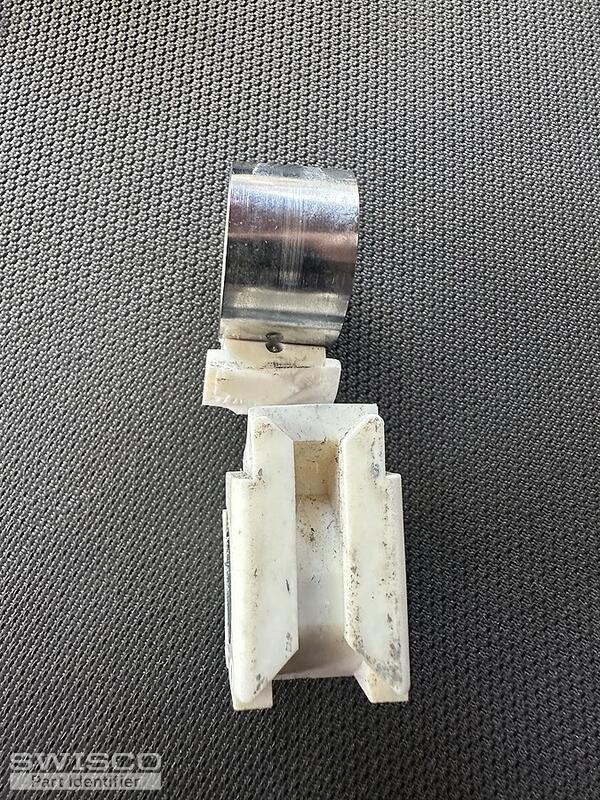

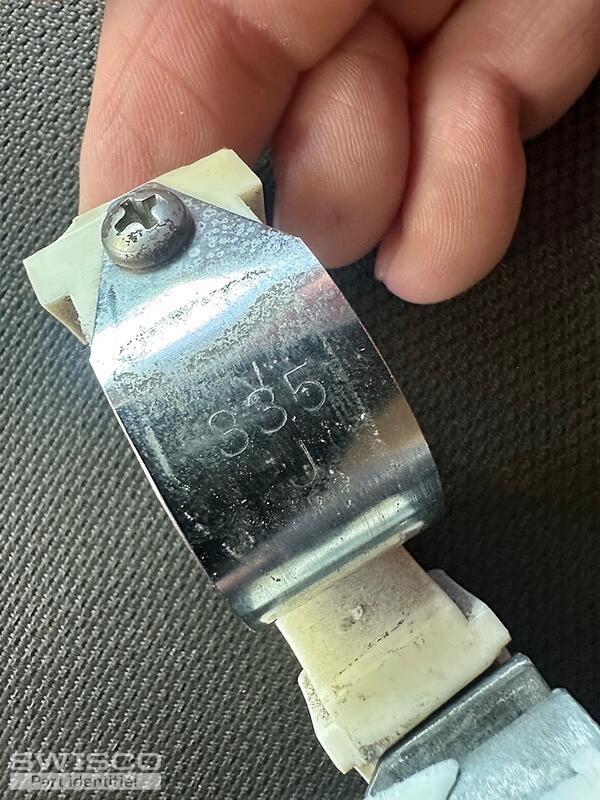

Cant seem to find the correct coil ballast the stamp looks like a 10 with a J underneath it?

I have the lower tilting sash of a 30 year old Certainteed Single Hung window that needs the coils/assembly replaced. The sash is 33" wide and 30" height and weighs approximately 19 lbs.

working on two windows. have looked up part identifier on your website, not sure if what i need is the certainteed pivot shoe 15-192 or the coil balance shoe, slate blue 15-177, the part i removed from the widow most resembles the 15-177. Also it appears to have a plastic shoe on the bottom windo ... (cont.)

I'm looking for a replacement pivot bar, and the plastic cover. I can combine them with the 534824 shoe to complete my repairs. I understand a lot of these parts are no longer available, so any recommendations would be appreciated. If I need to replace the whole assembly with something else, I am wi ... (cont.)

Please help identify

I identified my windows previously as Certainteed and replaced these parts on another one but the weight was wrong since although it keeps the window open when opened, it is difficult to close. Can you tell me what parts I would need from your site to repair them when the metal coils snap and the wi ... (cont.)

Number 409 is stamped on the spring

I need two Certainteed Coil Springs but the part number broke off a long time ago so when coils were taken out that part of coil that would let you know short/long LBS is gone. The existing parts are Balance Spring Cover 81680/90 and roller drum 86170. The windows are approximately 20-23 years old. ... (cont.)

My windows were installed in the early 80's. I believe they were LUX brand. The part shown has broken on 2 windows and I'm hoping I can get replacement parts. Pivot Shoe and Coiled Balanced spring (#407 is etched on the coil spring). The spring cover I believe is 'wide' I don't see any other marki ... (cont.)

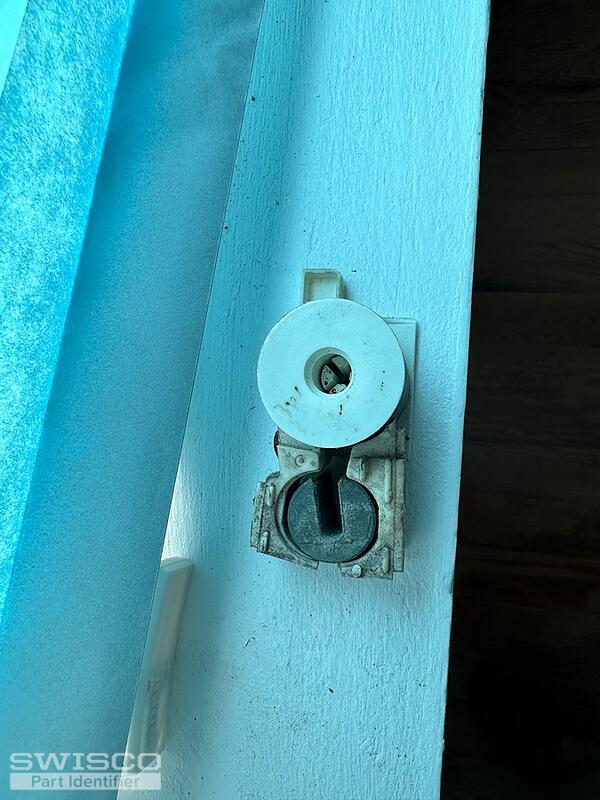

Hi Im am trying to ID the white part for a Certainteed double hung upper sash

Balance and pivot shoe is broken need to replace

The numbers 406 is on the coils , is possible to just buy the coils holder ?
