Viewing all customer Discussions for:

S160-06 6.5 lbs Series 160 Coil Balance

Would like complete assemblies if available. Otherwise,I need two coil balance springs. Only numbers I can see in the plastic is a patent # 4.610.108. Also a number on the coil is 6 or a 9? Window sash is 22.5"x 22.5"x 1.5" thick. Window channel is 1.25" wide.

On the broken balance, I see Patent #'s 5.232.208 - 5.365.638 - 6.584.644. Pictures are from a similar window where the balance is working fine. Do you know what this part is?

I have two Simonton Windows with broken coil springs that need replacing. A photo of the Simonton product label is attached along with some photos of the broken coil and another coil system that is still functional. The product code number on the broken coil is partially rubbed off but based on wha ... (cont.)

Weight of larger window is about 30 pounds and small window is about 27 pounds. There is one label with 13 on small window and 14 on larger window. I installed coil spring with purchased one at right and left side of window with code S140-14. But spring coil keeps going up when set at "U" shape. ... (cont.)

Hi, have 6 windows with the same balance problem - can't see any identifying marks and in fact, the coil where it connects with the plastic broke off - actually heard them snap/break in two of the windows.Old prefab home built 2001 - will need all the parts that comprise a window x 6.Hoping you can ... (cont.)

I'm looking for replacement window springs for a "Pella" window. Can you help me?Attached is a picture showing a number I noticed on a spring I pulled out. Hope this helps. ThanksMike

A rep asked me how thick is my shoe. It's a little less than a half inch. Thickness is .530 and the width is 1.209 and the sash height is 18 in.These windows are only about 12 years old I don't know why these shoes broke. One broke then the other one, together.Thanks for your help ... (cont.)

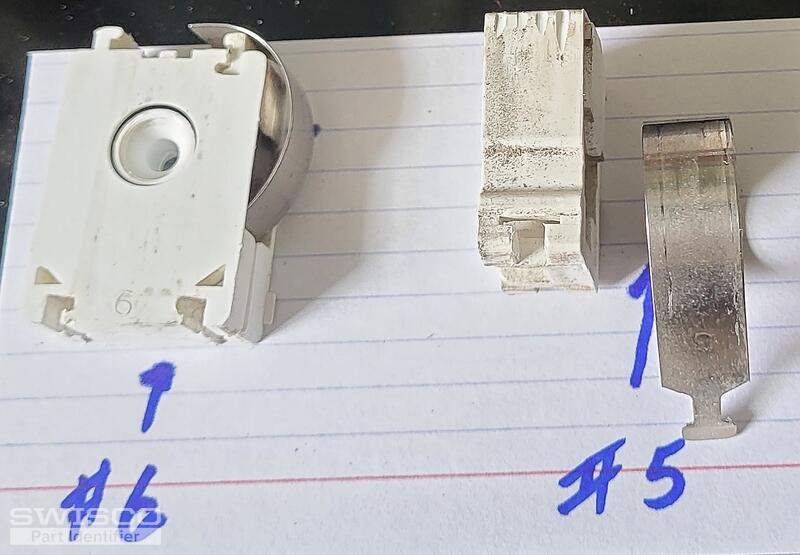

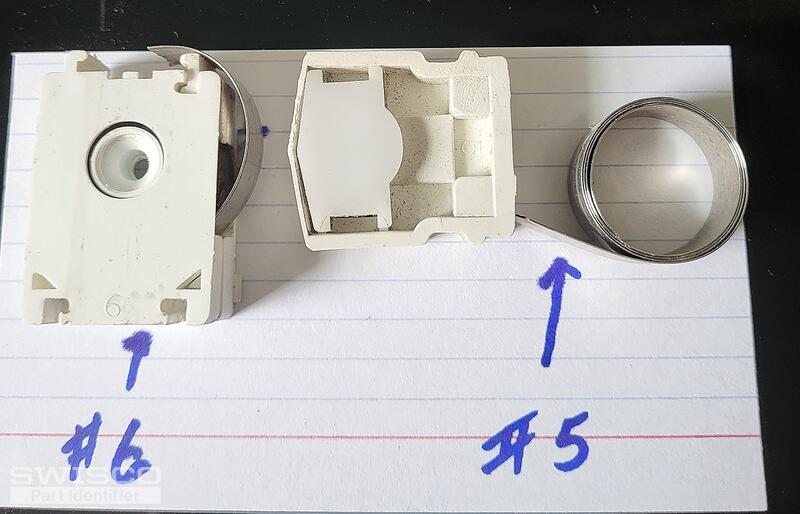

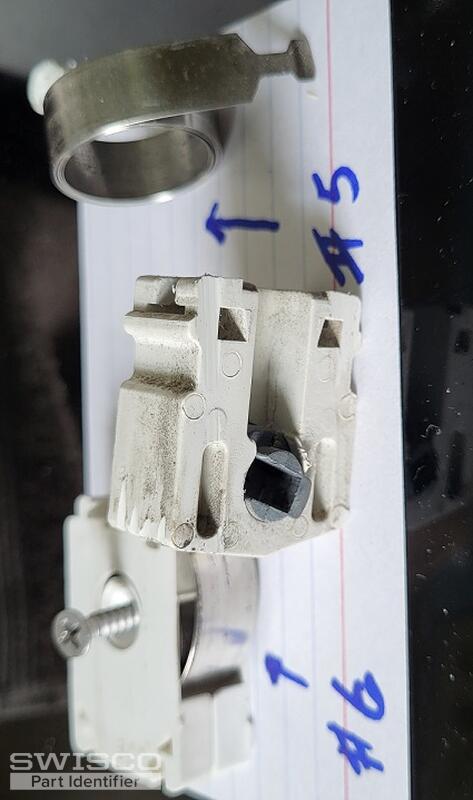

Hi Not sure if I need 6 or 9 strength coils With the hole at the bottom it reads 6 but the shoe had 18 marked on it I'm in the UK and coil springs are pretty unusual over here only seen a few in 20 years but want to attempt this repair,from your site they look like s152 coils Thanks greg ... (cont.)

Part size 2 15/16 inch by 1 3/16 inch, not including shoe part in photo. I need two constant force window balances including shoe and coil springs. Window manufacturer is Hayfield Windows, Double Hung Window #800 Part # on photo is 801020 Window weight is 24 lbs., so need to support 12 l ... (cont.)

What should we reorder? Metal coil is 1/2" wide and has the numbers 246D Z with a 1 under the D and #6.5 354.The gray shoe is 1/2" deep, 1" in length and 1 1/4" wide and has Patent 4,610,108. The white coil housing is 1/2" deep, 1 11/16 in length at it's middle, and 1 1/4" wide and has the numbers ... (cont.)

Window appears to have been forcibly removed shearing off the springs to the window balance. Balance body and shoe appear undamaged.The springs are marked as 6.5 x 35, and #7.5 x 35" respectively.I need the two sets of springs to repair this window balance.Please advise.James

I need to find a replacement.

The coils have w6.5 35" and the other has a number 4 on it, it is a half inch wide. I will new coils,coil supports,pivot shoe and pivot bars if required.

Im trying to find the spring balance assembly parts for a Simonton Window. Also had a questino on removing the plastic part at the top as itis onger than the cutout in the window frame.

This broken spring on the window I am trying repair does not have a calibration number. How do I select the correct one?

need replacement for above. window sash is 25 lbs.

Hi always relying on Swisco as have several small unit properties and need help identifying replacement parts. See attached photo of coil spring unfoiled. The stamped numbers say 6.5 35" and don't see Swisco replacement product. Don't know if it's a Titen as noted in your web page Think best to rep ... (cont.)

I am going to need 2 2-coil units for a tilt out single hung window. The old units were pretty completely destroyed removing them. I think I need 2 15-150 D units and 4 S160 series springs. The old springs were 1/2 " wide and marked "#6.5." I see you have 6.5 lb springs available in this series. I w ... (cont.)

We have 2 vinyl windows won't stay open. It seems the balance kit was broken.Attached are pictures for a good window, and a bad one that won't stay open. The size of the two windows is: 1. 21 1/2 * 34 2. 33 1/2 * 33 1/2Please let me know the parts I need for both windows. Paul

I need 1 left and 1 right balancer/shoes. Is the #6.5 stamped on the end of the coil spring mean the size? See attached photo.Thank you.Alan
